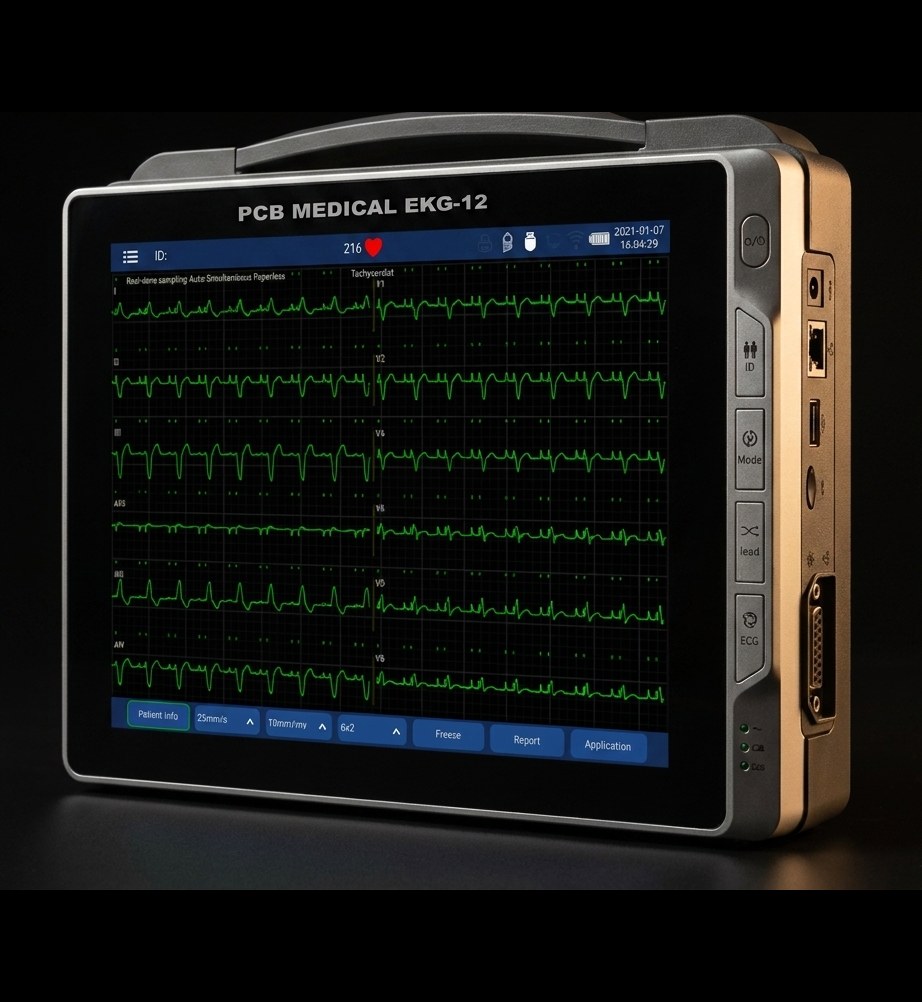

Tablet 12-Lead ECG · Wi-Fi
PCB-EKG-12
About the PCB-EKG-12
Hospital-grade 12-lead ECG in a modern tablet form-factor.
The PCB-EKG-12 Tablet 12-Lead ECG reinvents electrocardiography for the digital hospital. Six channels, twelve leads and a 10.4-inch touchscreen (1024×768) in a single, sleek tablet — designed to move with the clinician between wards, exam rooms and mobile stations.
At its core, the clinical-grade interpretation algorithm and adaptive filtering deliver clinically-trusted analysis. Pacemaker detection, waveform freezing, waveform review and report reanalysis mean fewer repeat exams and faster diagnostic decisions. Auto-diagnosis and auto-measurement support adult, pediatric and newborn patients.
Full Wi-Fi connectivity and wired network integration send reports directly to the hospital PACS and HIS. Print options include the built-in thermal printer, external printer or fully paperless workflow. Awarded the international design recognition — recognized industrial design for critical clinical use.
Specifications
A tablet designed for the modern hospital workflow.
ModelPCB-EKG-12
TypeTablet 12-lead ECG
Channels6 · 12-lead capability
Patient rangeAdult · Pediatric · Newborn
Display10.4″ touchscreen · 1024 × 768
Sampling rate32,000 Hz
A/D conversion24-bit
Frequency response0.01 – 350 Hz
Interpretationclinical-grade interpretation algorithm
Filteringadaptive
PacemakerDetection supported

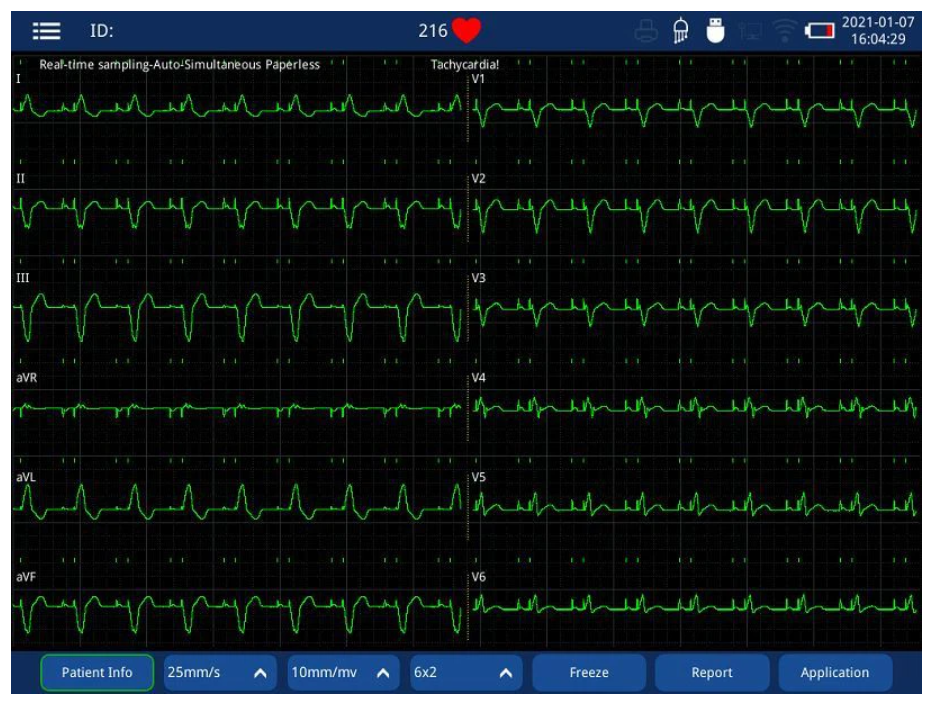

Waveform toolsFreeze · Review · Report preview · Reanalysis
PrinterBuilt-in thermal + external compatible
RecordingBuilt-in · External · Paperless
ConnectivityWi-Fi · Wired network
IntegrationPACS · HIS
CertificationsCE · ISO 13485
Key features
Built for the clinical workflow.

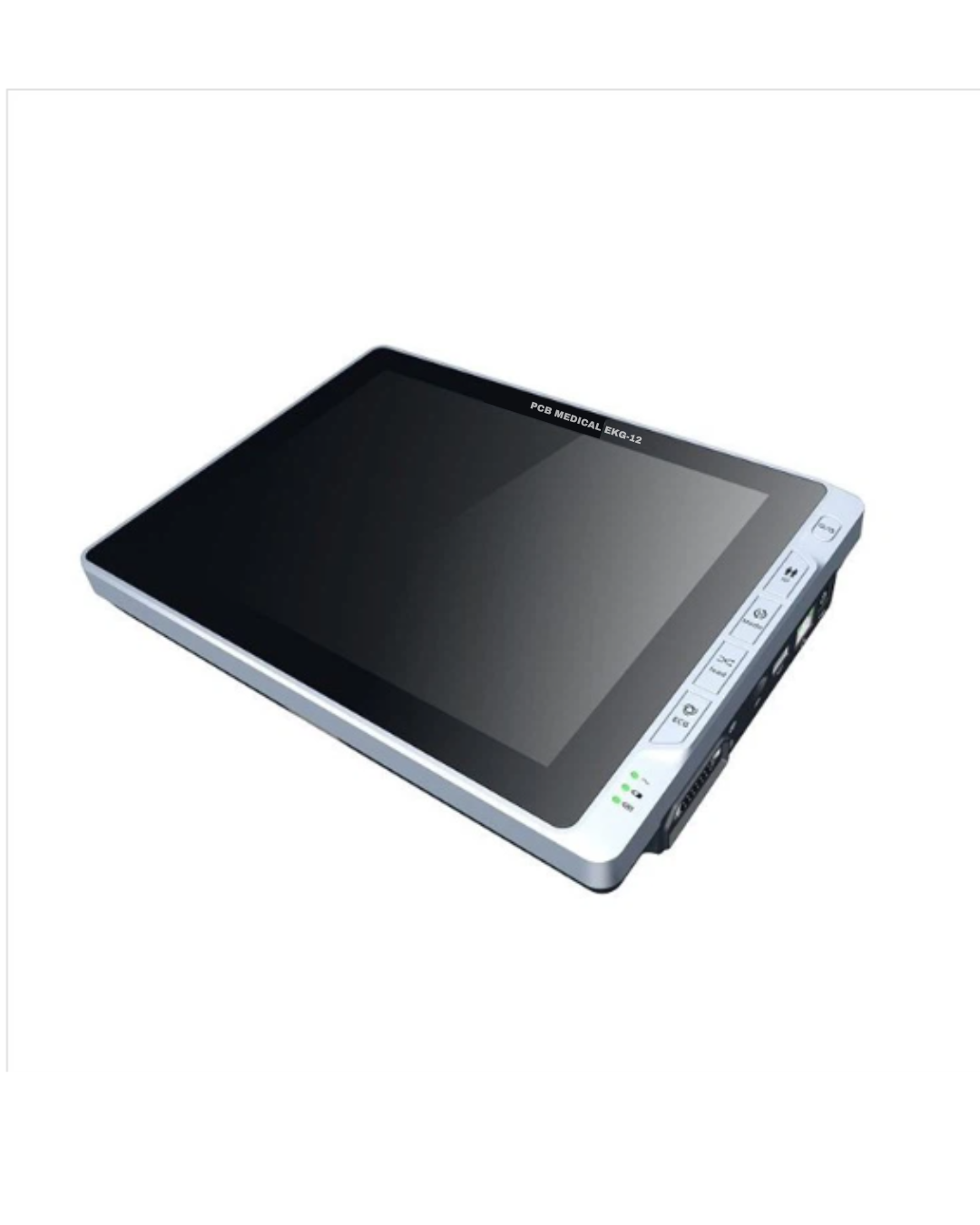

10.4″ touchscreen
High-resolution touchscreen (1024×768) with tablet-style navigation. Fast one-hand operation, in-glove touch, wall-mount or mobile use.
Glasgow interpretation
Clinically validated clinical-grade interpretation algorithm for automatic interpretation. adaptive filtering removes noise while preserving diagnostic detail.
PACS + HIS via Wi-Fi
Wired and Wi-Fi connectivity. Reports go directly to the hospital PACS and HIS systems — no USB, no printouts, no manual entry.
International Design Award
Industrial design recognized with the Design Award. Clean touch interface, built-in thermal printer, tablet ergonomics for continuous clinical use.

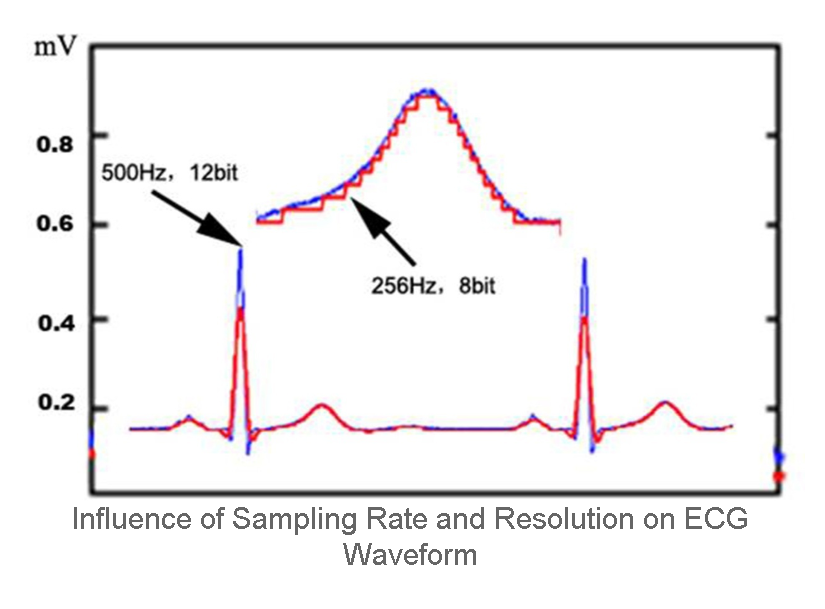

32 kHz · 24-bit · ultra-wide response
Digital sampling rate up to 32,000 Hz. A/D converter reaches 24 bits. 0.01–350 Hz ultra-wide frequency response acquires signals from pediatric to elder patients. Built-in powerful anti-interference filter for clearer waveforms.

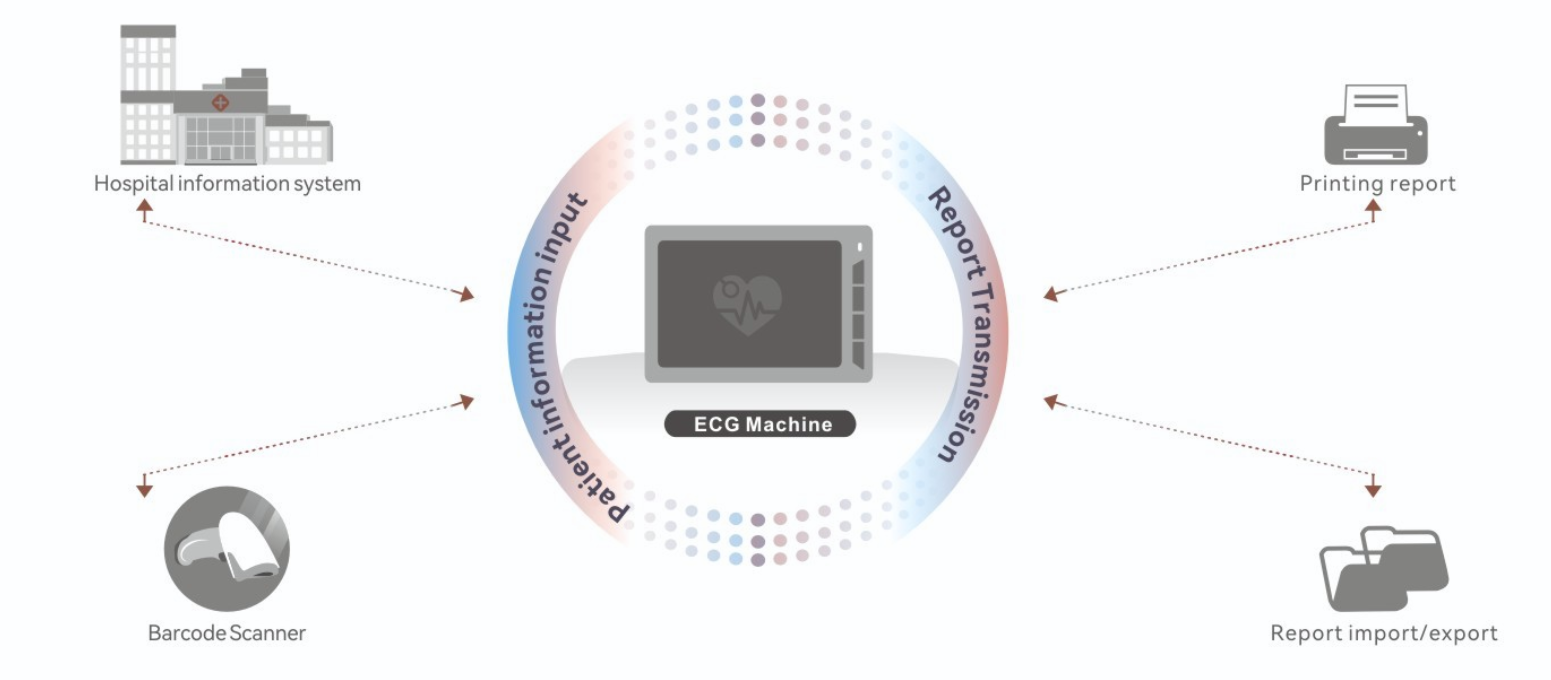

Hospital integration · HL7 / DICOM
Standard Wi-Fi + wired networking. The PCB-EKG-12 directly accesses hospital systems via HL7/DICOM — no third-party software needed. Barcode scanner for patient information input, printing report, report import/export. Multi-format: PNG · DCM · XML · HL7 · PDF · JPG · GDT.
Applications
Hospital
ICU
Emergency
Cardiology
OR / Anesthesia
Ward
Screening
PACS Integration
ICU
Emergency
Cardiology
OR / Anesthesia
Ward
Screening
PACS Integration
Certified quality
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ CE
✓ ISO 9001
✓ ISO 13485
✓ ISO 9001
✓ ISO 13485
📄
Product brochure
Complete PCB-EKG-12 data sheet in PDF, ready to print or send to your customer.
