ICU Ventilator · 9 Ventilation Modes · Adult & Pediatric
PCB-ICV1000
About the PCB-ICV1000
Critical care ventilation. Engineered for confidence.

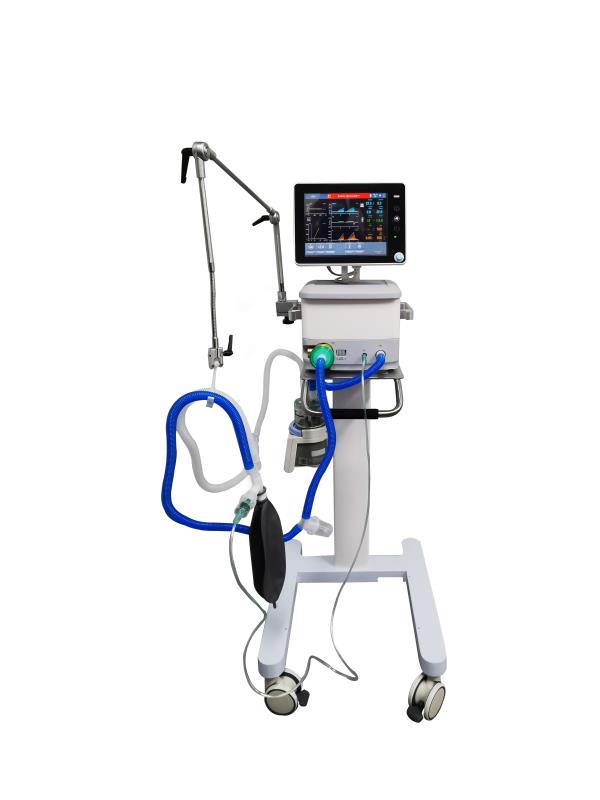

The PCB-ICV1000 ICU Ventilator is a full-featured critical care ventilator built for ICU, post-anesthesia recovery, emergency departments and high-acuity wards. A comprehensive library of nine ventilation modes covers both invasive and non-invasive support — from VCV and PCV through APRV, BIPAP, PRVC and NIV.

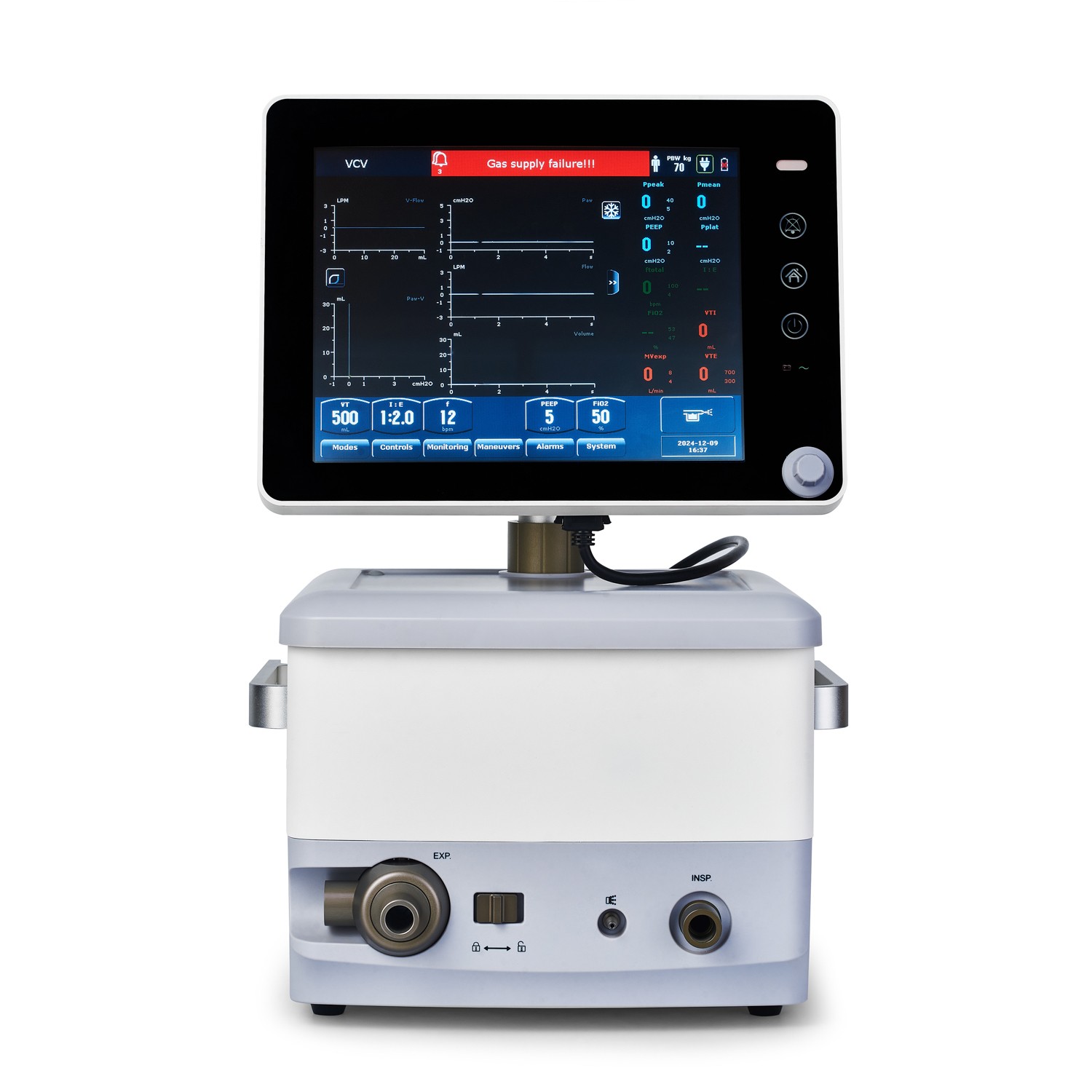

A 12.1″ TFT color touch screen displays six real-time waveforms (P-T, F-T, V-T) and PV/PF/FV loops for clinical decision-making at a glance. Touch-driven mode switching keeps the clinician’s attention on the patient.
A built-in Li-ion battery provides over 3 hours of operation — essential for intra-hospital transport, power outages or any environment where continuous ventilation cannot be interrupted.
Specifications
Built for the critical care unit.
ModelPCB-ICV1000
Display12.1″ TFT touch screen
Patient rangeAdult / Pediatric
Ventilation modesVCV / PCV / SIMV-VCV / SIMV-PCV / CPAP-PSV / APRV / BIPAP
Optional modesPRVC (PCV-VG) · SIMV-PRVC · NIV · VS
Apnea backupAutomatic (VCV / PCV)
WaveformsP-T · F-T · V-T + PV / PF / FV loops
Tidal volume50 – 1500 mL (opt. 20)
Respiratory rate1 – 120 bpm
Inspiratory time0.1 – 12.0 s
Respiratory ratio4:1 to 1:10
PEEPOFF · 3 – 50 cmH₂O · inner electric
Inspiration pressure5 – 80 cmH₂O
Pressure support0 – 80 cmH₂O
FiO₂21 – 100%
Flow trigger0.5 – 20 L/min (with base flow)
Pressure trigger0 – 20 cmH₂O
Drive gasO₂ + Air · 280 – 600 kPa
Max flow120 L/min
BatteryLi-ion · > 3 hours
PowerAC 100 – 240V · 50/60 Hz
MobilityMobile cart with casters
CertificationsCE · ISO 9001 · ISO 13485
Monitored parameters
Continuous monitoring on every breath.
Flow / VolumeTVi · TVe · MV · MVspont
Breath rateTotal rate · Spontaneous rate
PressurePpeak · Pmean · Pplat · PEEP · Pmin
I:E ratioDisplayed real-time
Respiratory mechanicsP-V · F-V · P-F loops
FiO₂21 – 100%
SpO₂ (optional)SpO₂ · Pulse · PI
CO₂ (optional)EtCO₂ · FiCO₂
OptionalCO₂-T · Pleth
Alarm settings
Audible and visual alarms across every parameter.
Respiratory rateHigh / low alarm
Minute volumeHigh / low alarm
PressureHigh / low alarm
SpO₂High / low alarm
FiO₂High / low alarm
BatteryDischarged / low alarm
O₂ supplyDown alarm
Key features
Designed for the critical care clinician.
9 ventilation modes
Complete library: VCV, PCV, SIMV-VCV, SIMV-PCV, CAPA/PSV, APRV, BIPAP, PRVC and NIV — plus automatic apnea backup ventilation.
12.1″ TFT touch screen
Large color TFT display with six real-time waveforms and PV/PF/FV loops. Touch-driven mode switching for fast, accurate clinical decisions.
Li-ion battery · > 3 hours
Built-in Li-ion battery for continuous ventilation during intra-hospital transport or power outages — essential for ICU safety.
Adult & pediatric ranges
Tidal volume 50–1500 mL (optional 20–1500 mL). Covers the full patient spectrum from pediatric to adult ICU care.
Applications
ICU
Post-Anesthesia Recovery
Emergency Department
High-Acuity Ward
Pediatrics
Intra-hospital Transport
Respiratory Therapy
Veterinary ICU
Certified quality
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ CE
✓ ISO 9001
✓ ISO 13485
✓ ISO 9001
✓ ISO 13485
📄
Product brochure
Complete PCB-ICV1000 data sheet in PDF, ready to print or send to your customer.
