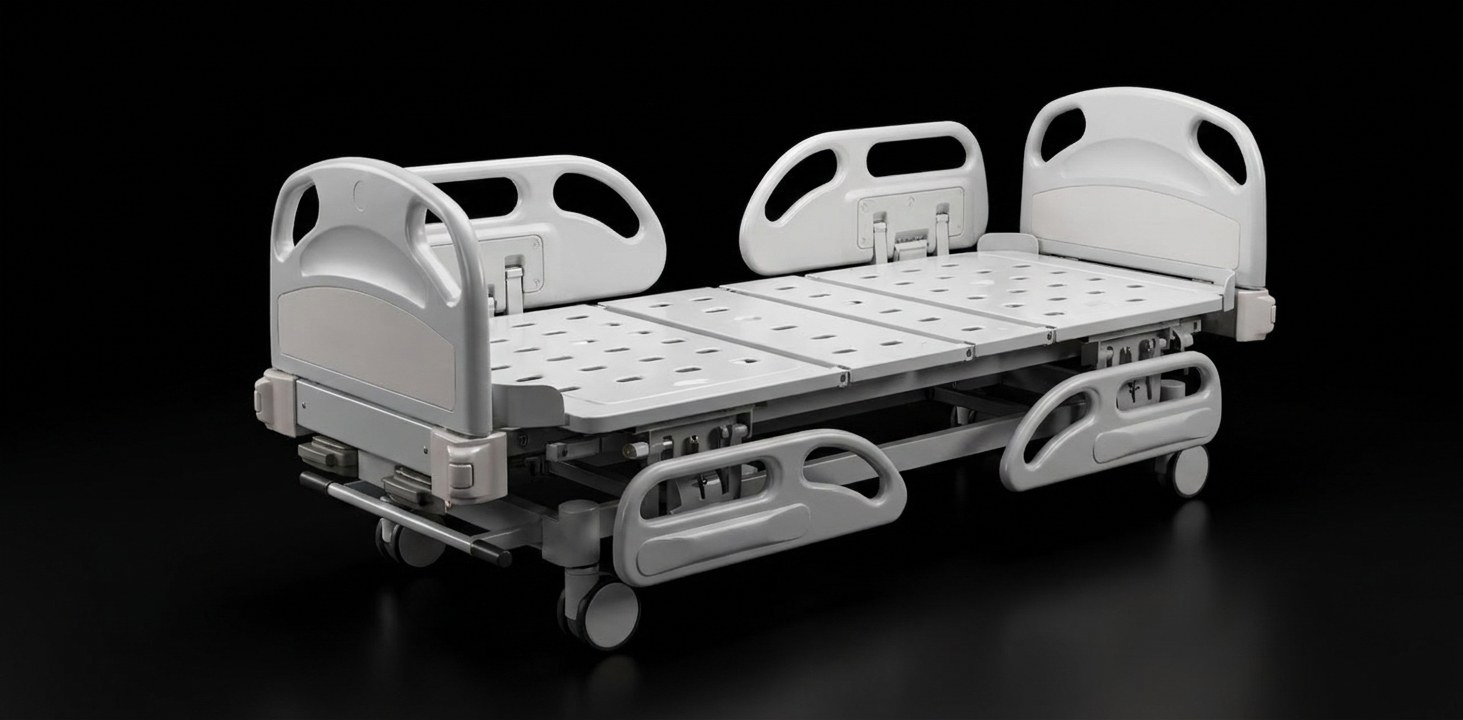

Manual Hospital Bed · 5-Function · Inpatient Wards & Nursing
PCB-MB15
About the PCB-MB15
Manual reliability for daily care.
The PCB-MB15 Manual Hospital Bed is a 5-function manual hospital bed designed for inpatient wards, nursing facilities and home care. Five smooth manual cranks adjust back rest (0–65°), leg rest (0–30°), bed-board height, Trendelenburg and Reverse Trendelenburg positions for clinician comfort and patient positioning.
Built around a steel frame with ABS-molded headboard and footboard, perforated bed board for ventilation, and PP side rails with one-hand locking, the PCB-MB15 is designed for daily clinical use with simple, low-maintenance mechanics.
Four heavy-duty casters with brakes provide stable positioning and easy room-to-room transfer. Four IV pole holders at all corners accept standard infusion poles.
Specifications
Built to the millimeter.
Overall size2150 × 1010 × 510 mm
Bed board1945 × 830 mm
Bed board height510 mm
Back rest0 – 65°
Leg rest0 – 30°
Adjustment5 manual cranks
CastorsØ 125 mm · 4 swivel · with brake
CranksFoldable manual cranks
IV pole holders4
Side railsPP damping with locking
Headboard / FootboardABS molded · quick-removable
Maximum load capacity250 kg
Max working load175 kg
PackageBed · 2 rails · head/foot · IV pole · manual
CertificationsCE · ISO 9001 · ISO 13485
Key positions
Designed for every care posture.

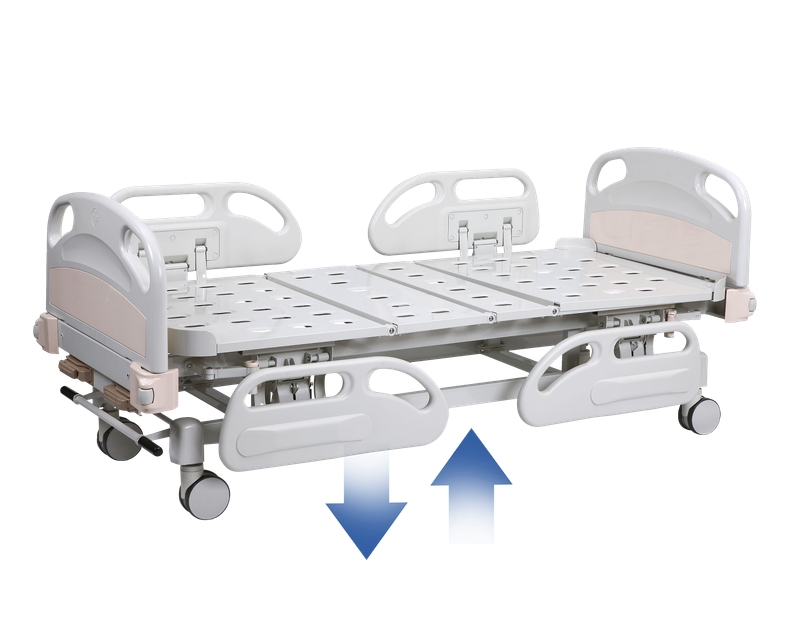

Back rest 0 – 65°
Supports sitting up, dyspnea relief, cough and expectoration, chest drainage, heart failure care and pericardial effusion management.

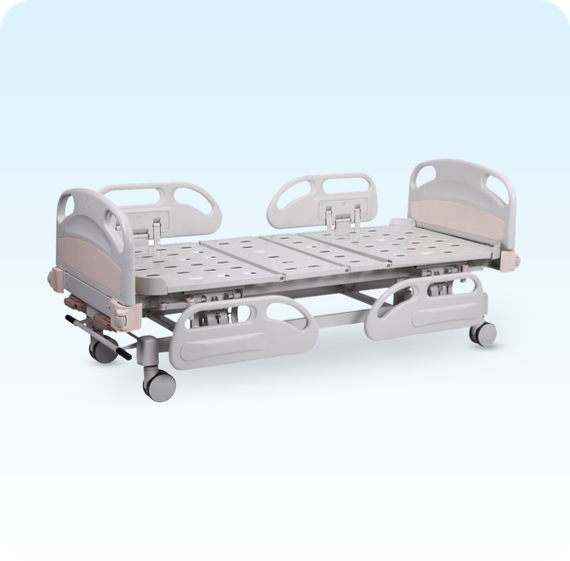

Leg rest 0 – 30°
Supine position with bent knees for chest/abdominal exam, catheterization, perineal flushing. Increases lower-limb venous return and reduces edema.

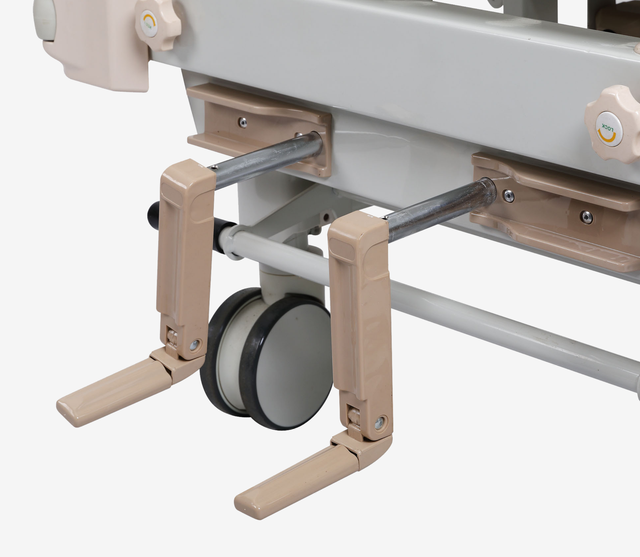

5 manual cranks
Smooth, low-friction crank mechanism for back rest, leg rest, bed-board height, Trendelenburg and Reverse Trendelenburg adjustments — no electricity required, low-maintenance.

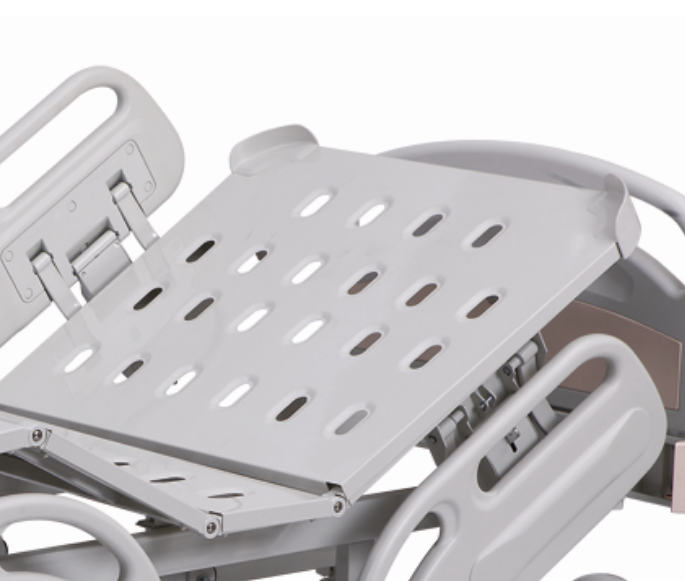

Perforated bed board
Four-section perforated bed board provides ventilation, reduces pressure on the patient and supports radiotranslucent imaging on the back-rest section.
Details
Built for daily clinical use.

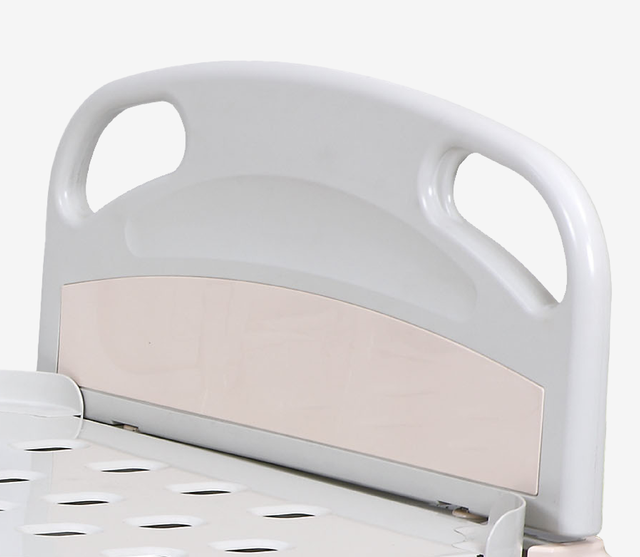

ABS-molded headboard / footboard
Single-piece ABS construction with integrated handles. Smooth, easy-to-disinfect surface for daily cleaning protocols.

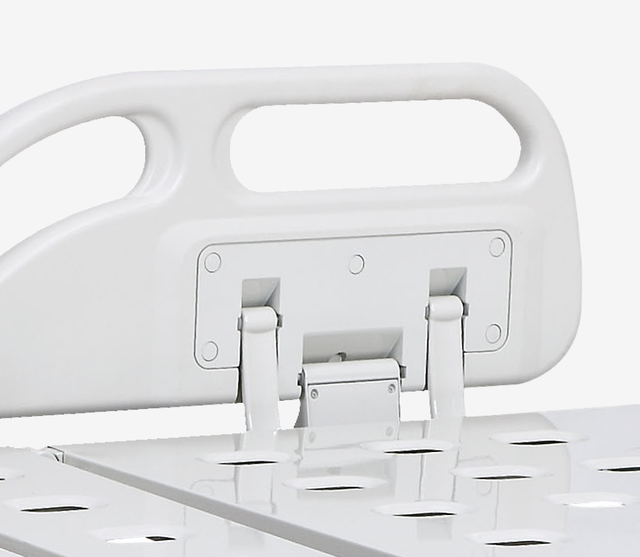

PP side rails with locking
PP polymer side rails with one-hand locking and smooth folding. Fall-prevention without sacrificing access to the patient.

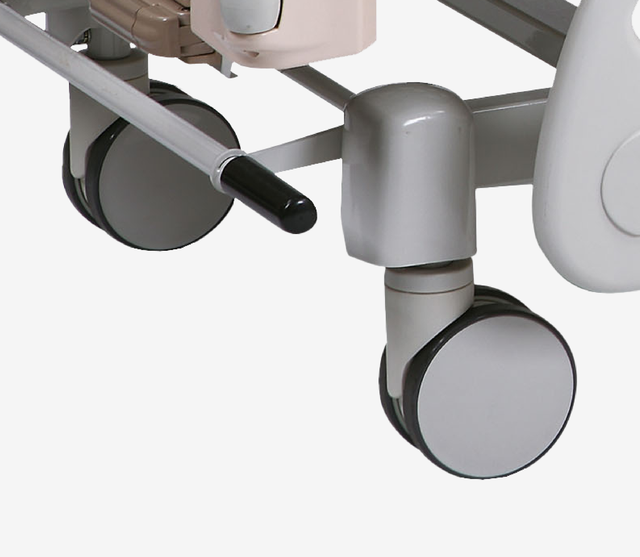

Castors Ø 125 mm · with brakes
Four Ø 125 mm swivel casters with individual brakes for stable positioning at the bedside and easy room-to-room transfer.
4 IV pole holders
Four corner sockets accept standard IV poles — ideal for multi-line infusion therapy and nursing flexibility.
Applications
Inpatient Wards
Nursing Facilities
Home Care
Recovery
General Hospital
Rehabilitation
Certified quality
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ CE
✓ ISO 9001
✓ ISO 13485
✓ ISO 9001
✓ ISO 13485
📄
Product brochure
Complete PCB-MB15 data sheet in PDF, ready to print or send to your customer.
