Hydraulic Transfer Stretcher · ICU & OR Use · Multi-Position Adjustable
PCB-ST20
About the PCB-ST20
Hydraulic precision for critical care.

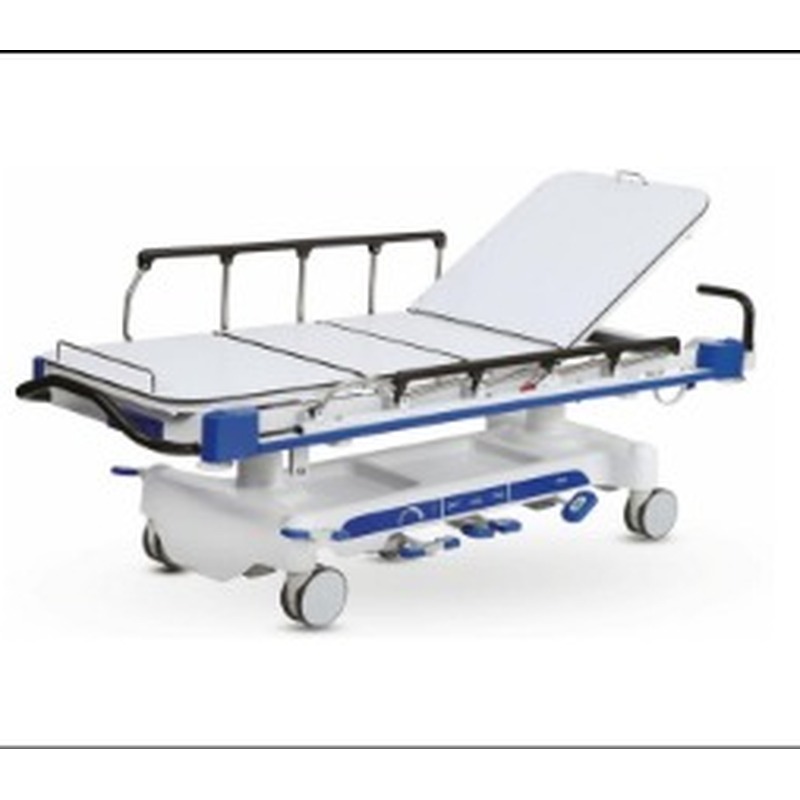

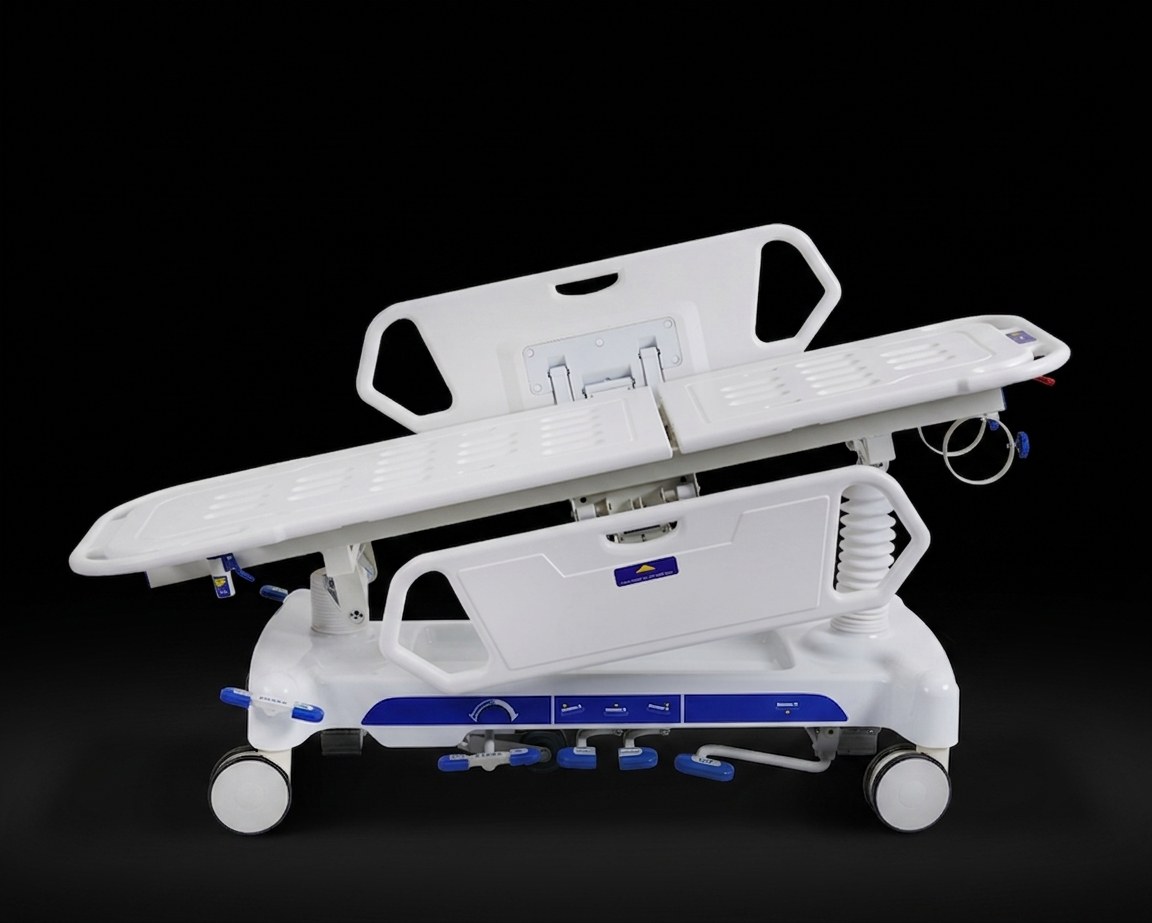

The PCB-ST20 Hydraulic Transfer Stretcher is engineered for hospital operating rooms, emergency departments, inpatient units and outpatient clinics. A foot-operated hydraulic system adjusts height (590–813 mm), back rest (0–85°) and Trendelenburg / Reverse Trendelenburg positions (±12°) with smooth, precise control.
The bed board is built on a PP polymer chassis with self-lowering side rails, and the retractable 5th wheel with multi-direction / single-direction steering switch makes corridor navigation effortless. An integrated utility tray stores patient belongings or medical supplies during transfer.
Designed for departments that need a single stretcher able to support resuscitation positioning, post-operative recovery and neurological / urological / orthopedic care — the PCB-ST20 covers them all.
Specifications
Built to the millimeter.
Overall size1906 × 743 mm
HI-LOW range590 – 813 mm
Bed board1906 × 610 mm
Back rest0 – 85°
Trend / Rev. Trend0 – 12°
BrakeCentral brake
Castors150 mm swivel
5th wheel1 (retractable)
IV pole holders2
Oxygen tank holder1
Net weight82 kg
AdjustmentHydraulic foot pedal
Min. bed height590 mm from floor
Side railsPP damping
PackageStretcher · IV pole · mattress · manual
CertificationsCE · ISO 9001 · ISO 13485
Key positions
Designed for every clinical posture.
Hi-Low (813 – 590 mm)
Minimum bed-board height of 590 mm from the ground for easy patient on/off. Adjust to match the receiving bed for safe, level transfer.
Back rest 0 – 85°
Supports sitting up, dyspnea relief, cough and expectoration, chest drainage, heart failure care and pericardial effusion management.
Trendelenburg 0 – 12°
Suitable for right middle / lower lobe drainage, duodenal drainage, premature rupture of membranes, root-bone or tibial-tubercle traction and intracranial hypotension syndrome.

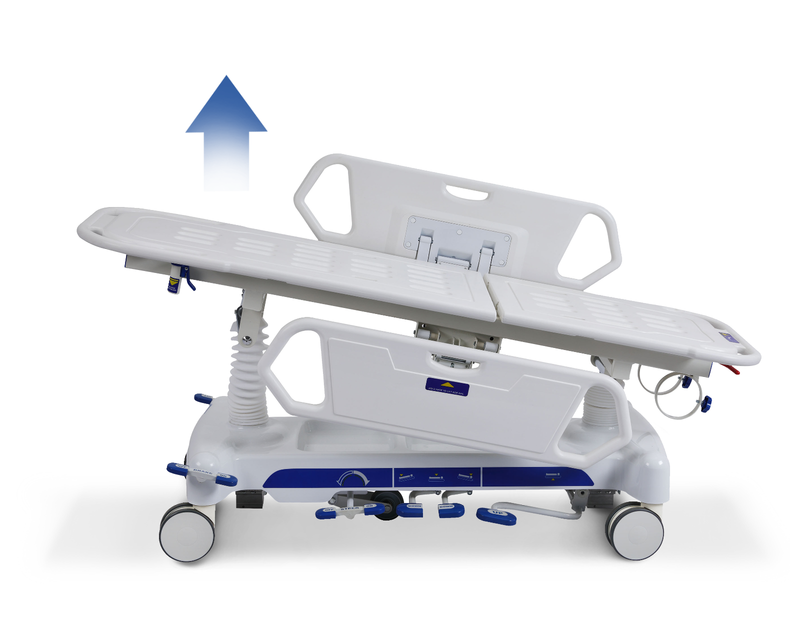

Rev. Trendelenburg 0 – 12°
Reduces intracranial pressure, facilitates intracranial venous return, reduces cerebral edema and facilitates skull traction — brain surgery, stroke, upper urinary tract stones, skull traction.

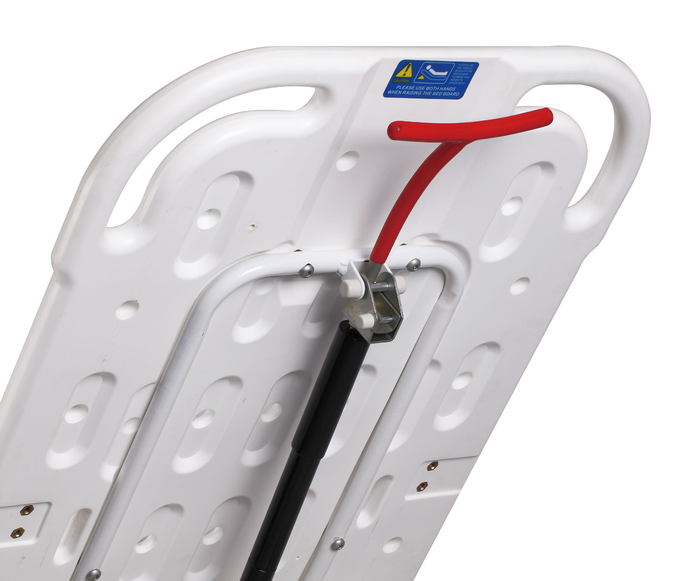

PP side rails
Smooth and fast self-lowering mechanism with dampening system that can be operated with one hand. When folded, the bed board connects gap-free with operating table or bed.

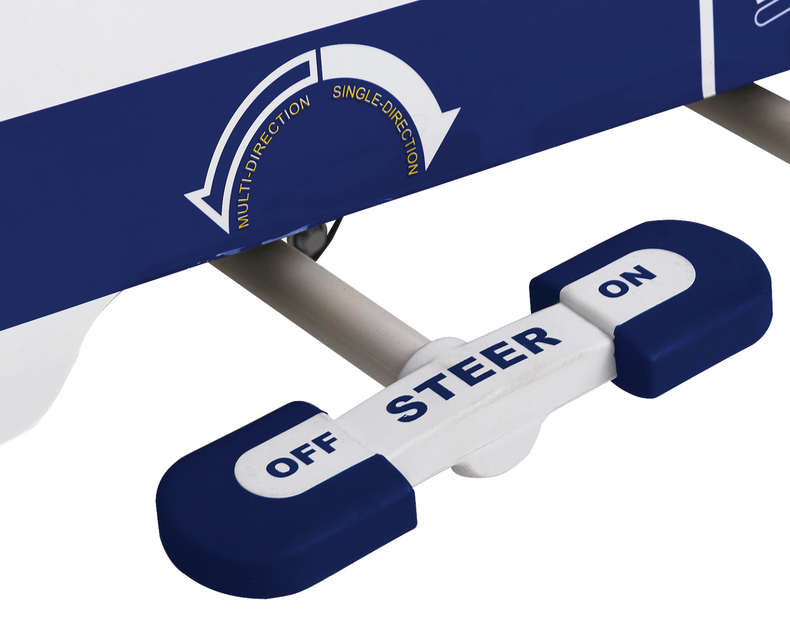

Retractable 5th wheel
Multi-direction / single-direction (STEER ON/OFF) switch provides effortless directional movement and cornering in narrow corridors.
Details
Engineered down to the controls.

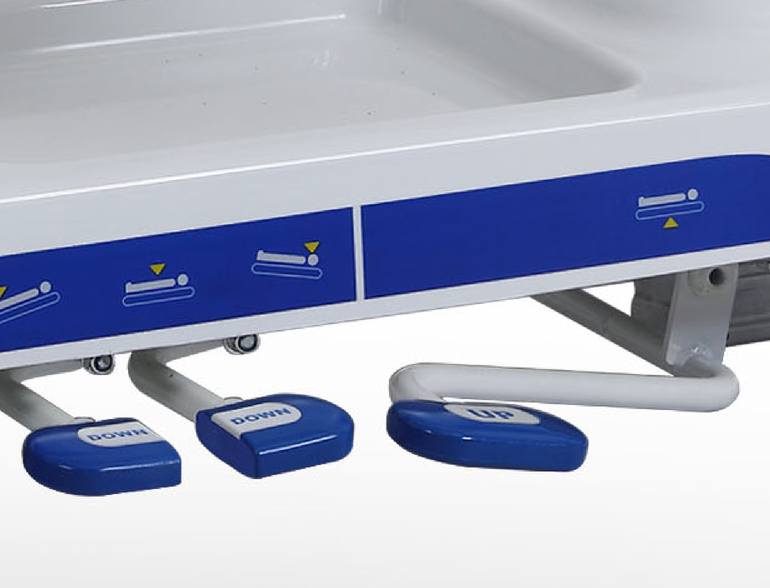

Hydraulic foot pedals
Color-coded foot pedals on both sides control height up/down, Trendelenburg and Reverse Trendelenburg — no need to release the patient.

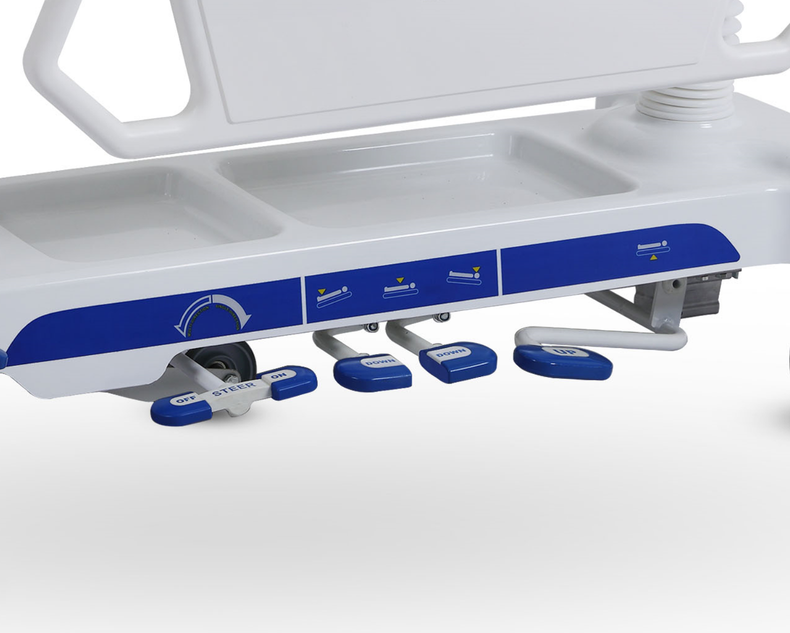

Integrated utility tray
A tray built into the lower frame stores patient belongings, IV bags or medical supplies during transfer between departments.
Applications
ICU
Operating Theater
Emergency Department
Neurosurgery
Vascular Surgery
Urology
Orthopedics
Obstetrics
Certified quality
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ CE
✓ ISO 9001
✓ ISO 13485
✓ ISO 9001
✓ ISO 13485
📄
Product brochure
Complete PCB-ST20 data sheet in PDF, ready to print or send to your customer.
