Multi-Parameter Patient Monitor · VSM Series · 12.1″ Touch Screen
PCB-VSM-12

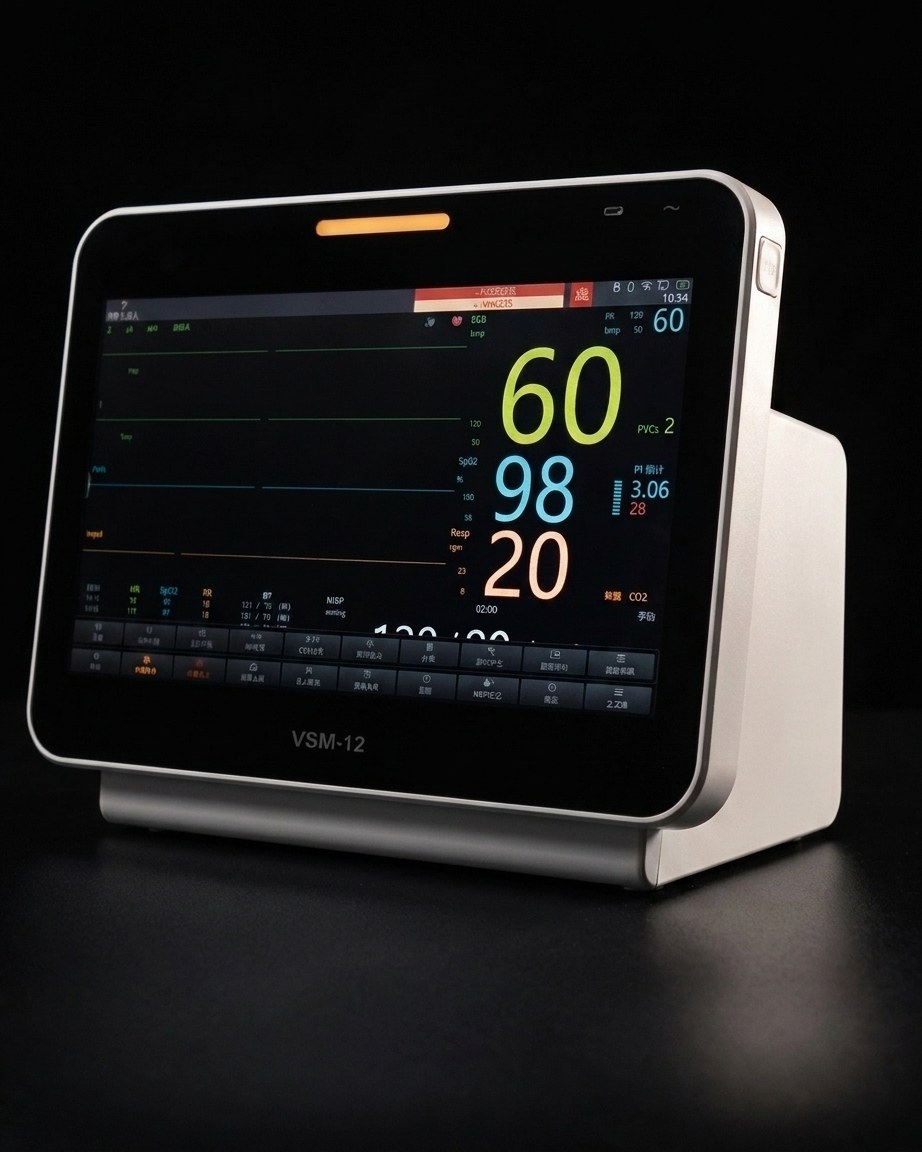

About the PCB-VSM-12
Bigger screen for ICU, CCU and operating theater.
The PCB-VSM-12 is a Multi-Parameter Patient Monitor built around a larger 12.1″ color touchscreen — suited for ICU / CCU, operating theater and intensive care settings where clinicians need more screen real-estate for waveforms, trends and multi-bed views.
Equipped with 7 selectable display interfaces, the system delivers clear visualization of ECG, Heart Rate, NIBP, SpO₂, Pulse Rate, Respiration, and Temperature — the seven core vital signs every critical-care and OR team needs.
Built for continuity, the integrated Li-ion battery ensures over 3 hours of operation. CF-type defibrillation-proof applied parts and IPX1 protection make it safe for use in surgical and intensive-care environments.
Compact, fanless, and ready for daily clinical use — the PCB-VSM-12 is the natural choice when departments need a bigger, clearer display.
Configuration · Function · Specifications
Engineered for ICU, CCU and OR.
12.1″ touch monitor with full vital-sign coverage, integrated Li-ion battery and CF-type defibrillation-proof inputs.
Display
12.1″ color LED touchscreen
7 layouts: Standard, Big Font, OxyCRG, Trend, Vital Sign, Holistic Waveform, Multi-Bed
Measurements
ECG (3 / 5 / 12-lead), HR, NIBP
SpO₂, PR, Respiration, dual-channel TEMP
Battery & Power
Li-ion 14.6 V / 2500 mAh, ≥180 min
AC 100–240 V, 50/60 Hz
Data Storage & Connectivity
Trend data 1200/2400/7200 hrs · Holistic waveform 48 hrs · NIBP records up to 5,000 · Alarm events up to 5,000 · Ethernet RJ45, Wi-Fi (optional), HDMI, USB 2.0×2, HL7 protocol
Alarm System
Three-tier priority (High / Medium / Low) · Tri-color visual light · Adjustable volume 1–10 · Auto limit, latch and nurse-call support

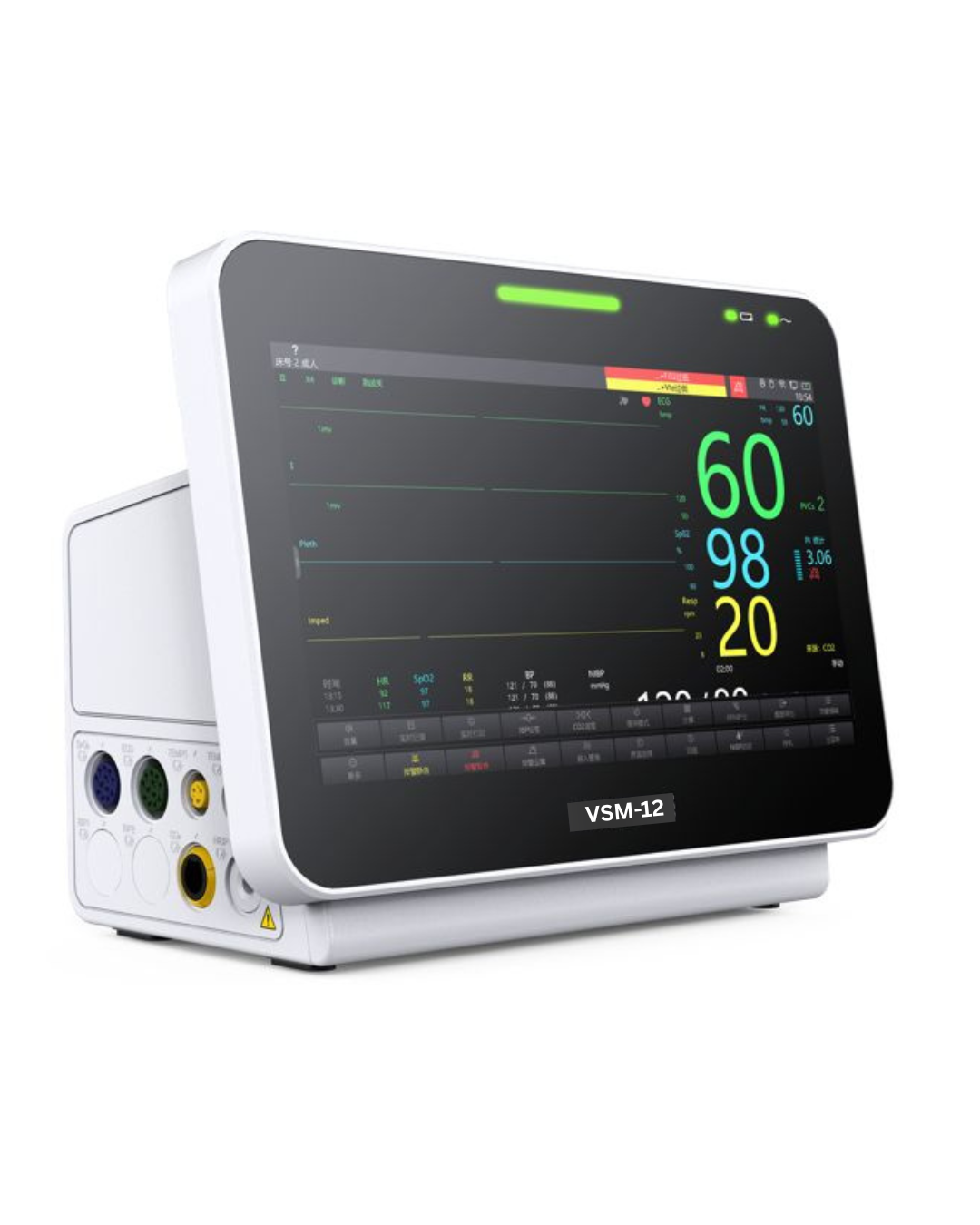

12.1″ touch interface & connectivity
Bigger screen, faster clinical decisions
The 12.1″ touchscreen gives clinicians more room for waveforms, configurable trends and multi-bed view — designed for ICU, OR and intensive-care workflows.
- 7 display interfaces (Standard, Big Font, OxyCRG, Trend, Vital, Holistic, Multi-Bed)
- Multi-bed view over Ethernet / Wi-Fi
- HL7 transmission of parameters + waveform
- HDMI output for big-screen mirroring
Why VSM-12
Bigger display for critical care.
🖥
12.1″ touchscreen
Larger LED touch display optimized for ICU, CCU, operating theater and intensive care environments.
🩺
7 vital signs
ECG, HR, NIBP, SpO₂, PR, RR and TEMP — everything OR, ICU or post-operative units need at the bedside.
👶
Adult, Pediatric & Neonatal
Configurable measurement ranges and CF-type defibrillation-proof inputs across all patient categories.
Used across clinical environments
Certified quality
Manufactured under ISO 13485
ISO 13485 is the international standard for medical device quality management. PCB Medical equipment is built to international standards for patient monitoring.
CEISO 9001ISO 13485
📄
Product brochure
Complete PCB-VSM-12 datasheet in PDF, ready to print or send to your client.
