Surgical Table · ATS Base · Electro-Hydraulic

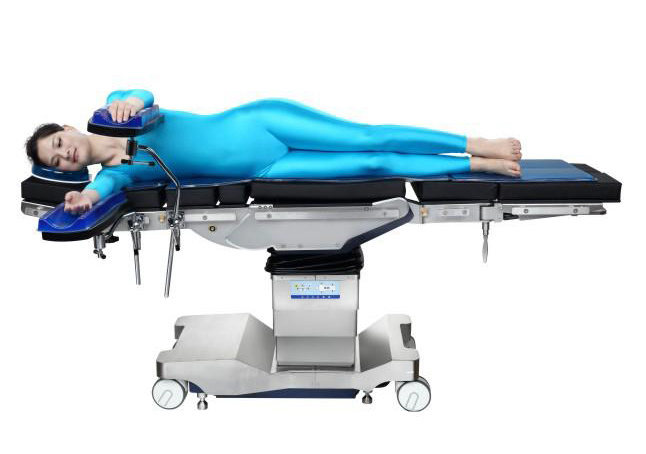

ATS Surgical Table

Cost-effective general surgical table. 500-lb standard (1000-lb optional) lift capacity, full plate articulation, 0–180° tabletop rotation, 300 mm longitudinal slide, C-arm compatible top.

View specifications

500 / 1000 lb180° rotationC-arm compatibleFull articulation

500 lbStandard

1,000 lbOptional

180°Top rotation

300 mmLongitudinal slide

Overview

Versatile general surgical table.

A straightforward, economical surgical platform. Standard 500-lb (optional 1000-lb) lift capacity, 30° Trendelenburg/Reverse, ±15° lateral tilt, full back/head/leg/chest plate articulation, 0–180° tabletop rotation and 300 mm longitudinal shift. Wired remote control, C-arm compatible top, and a standard accessory kit (anesthesia frame, shoulder supports, arm rests, leg supports). Battery backup, wireless control and auto-reset functions available as optional upgrades.

Key features

Built for clinical use.

💰
Cost-effective baseEntry-level platform in the surgical table lineup — value pricing without giving up full articulation and C-arm imaging access.
🔄
180° rotation + slideTabletop rotates 0–180° with 300 mm longitudinal shift — broad C-arm access without repositioning the patient.
📦
Standard accessory kitShips with anesthesia frame, shoulder supports, arm rests and leg supports — ready for general OR use out of the box.

Applicable across clinical environments

General SurgeryC-arm ImagingHospitalSurgery CenterOutpatient

Technical data

Specifications

Complete technical data.

Lift capacity500 lb std / 1,000 lb optional

Dimensions2050 × 500 mm

Height rangeApprox. < 30 to 43 in

Trendelenburg / Reverse30°

Lateral tilt±15°

Chest plate25° / 35°

Back plate+75° / −20°

Head plate+20° / −90°

Leg plate0 – 90°

Rotation0 – 180°

Longitudinal shift300 mm

ControlWired remote (standard)

ImagingC-arm compatible top

Standard accessoriesAnesthesia frame · shoulder supports · arm rests · leg supports

OptionalBattery backup · wireless · auto-reset/level

Certified quality

✓ FDA Approved
