PCB-DCL-60
Twin-dome ceiling illumination for the modern OR.

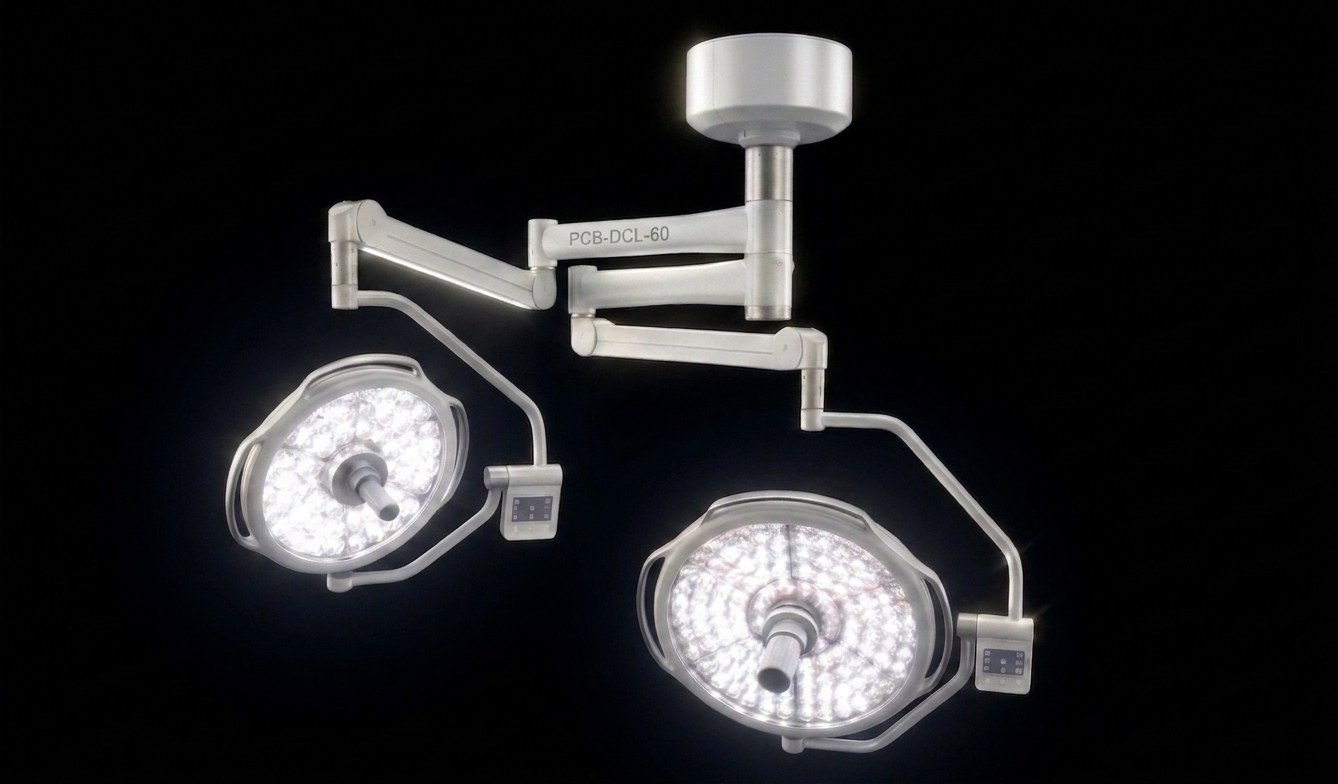

The PCB-DCL-60 Dual-Dome Ceiling LED Surgical Light delivers full operating-room illumination from two matched ceiling-mounted domes. Each dome carries 72 high-output LEDs with proprietary multi-point optics for a 60,000 – 160,000 lux adjustable spot and an illumination depth above 1,400 mm — the standard for general, vascular, cardiothoracic and emergency surgical theaters.
An aluminum-alloy shell with upgraded internal heat-dissipation keeps each module cool over long procedures. The arc-shaped lamp holder design uses multi-point light sources for 360° uniform illumination with no ghosting — even if part of the dome is blocked, the overlapping beams from the other LED modules fill in the field.
Each dome is independently positioned by a light-weight suspension arm. The integrated LCD touch panel synchronously adjusts LUX, CCT (3,500 – 5,000 K) and CRI (Ra 85 – 97). Available options: wall control, wireless remote and built-in battery backup.
Built to operating-room standards.
Engineered for every surgical theater.

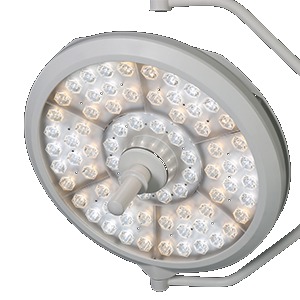

72 LEDs per dome · multi-point optics
Each dome carries 72 high-output LEDs with proprietary lenses. Overlapping beams from multiple modules create a uniform 360° light spot with no ghosting — even with partial obstruction.

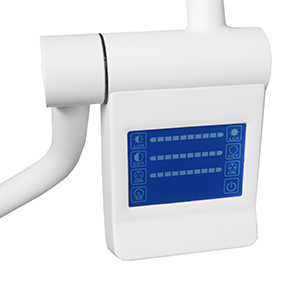

LCD touchscreen control
User-friendly LCD touchscreen panel mounted on each yoke. Synchronously adjust LUX, CCT and CRI in real time. On/off and endoscope mode with one tap.

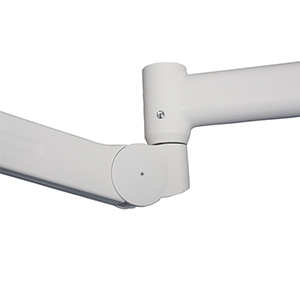

Light-weight suspension arm
Each dome has its own light-weight, flexible suspension arm for effortless angling and positioning. Smooth rotation through 360° — both domes can be independently positioned around the surgical field.

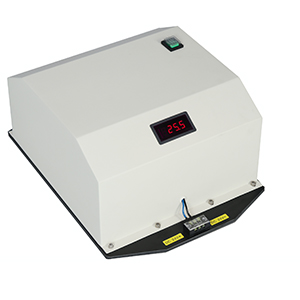

Battery backup (optional)
Built-in battery backup system ensures continuous illumination during mains-power failure. Critical for life-saving procedures and surgical safety. Available as factory option.

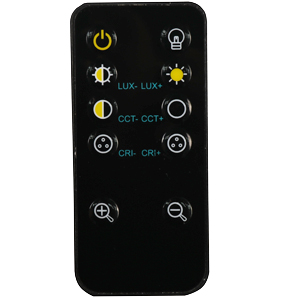

Wireless remote (optional)
Wireless remote control for sterile contactless operation. Adjust LUX, CCT, CRI and switch endoscope mode from across the OR — ideal for scrubbed personnel.
Parallel circuit fail-safe
Each LED group runs on an independent parallel circuit. If one group fails, the remaining modules continue uninterrupted — the procedure is never compromised. Over-voltage protection auto-cuts power at fault.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-DCL-60 data sheet in PDF, ready to print or send to your customer.
