PCB-DCM-120/120
Dual-head ceiling-mounted LED surgical light — twin 120,000 lux heads, 72 LEDs per head, wall control + LCD touch, German spring arms, 50,000-hour LED life.
72 LEDs per head
Wall control
50,000 hr LED
Twin 120k lux heads for balanced full OR illumination.

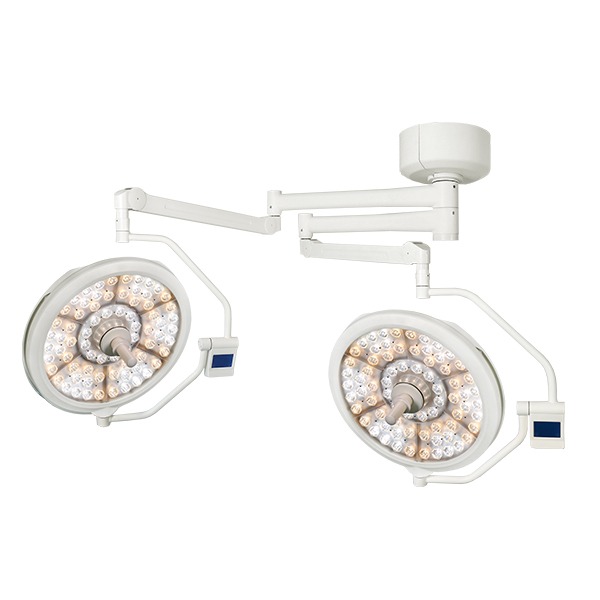

The PCB-DCM-120/120 is a dual-head ceiling-mounted LED surgical light with two identical 120,000 lux heads, each with 72 high-output LEDs (144 LEDs total). Both heads are matched output — illuminate two distinct fields simultaneously, or combine both heads into a single deep-cavity field from multiple angles. Color temperature adjustable 3500–5000 K with CRI 85–97 for true tissue color rendering. Wall control panel plus LCD touch on each yoke for one-touch intensity, color temperature, and focus adjustment. German spring arms with aluminum main arm hold both heads in any position without drift.
Centralized OR control, per-head precision

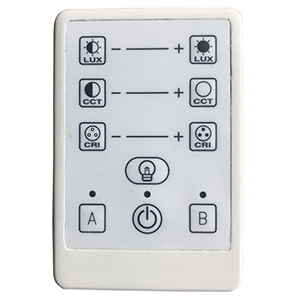

Wall-mounted control panel gives the OR team centralized control of both lamp heads without touching the lamps themselves — adjust LUX, CCT (color temperature), CRI, and on/off for each head from the wall. Additional LCD touch panel on each yoke for in-field fine-tuning. Sterile center handle on each dome for surgeon-led repositioning.
- Wall-mounted control panel (LUX / CCT / CRI / on-off)
- LCD touch panel on each head yoke
- Independent control per head
- Sterile center handle per dome
- 72 LEDs per head — 144 total
Effortless positioning of both heads
German spring-balanced arms with aluminum main arm hold each head in any position without drift. Independent positioning lets the team aim heads at distinct surgical fields or combine into one deep cavity. Optional wireless hand remote controls all parameters for both heads from anywhere in the OR. Optional integrated backup battery keeps illumination during power events.
- German spring arms · aluminum main arm
- Independent positioning of each head

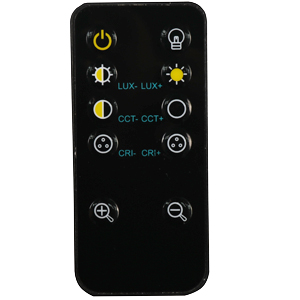

- Optional: wireless hand remote (LUX / CCT / CRI / on-off)
- Optional: integrated backup battery
- Heat-to-light ratio < 3.6 mW/m²·lux
The balanced workhorse of the DCM family.
Twin 120,000 lux
Two identical heads — 240,000 lux combined output. Balanced bilateral illumination for general OR work.
Wall + LCD control
Wall-mounted central panel + LCD touch on each head. Centralized OR control plus per-head fine-tuning at the source.
Cold LED light
Heat-to-light < 3.6 mW/m²·lux. No surgeon discomfort, no field heating during long procedures.
Applicable across surgical specialties
Specifications
Complete technical data for the PCB-DCM-120/120 dual-head ceiling LED surgical light.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-DCM-120/120 datasheet in PDF, ready to print or send to your client.
