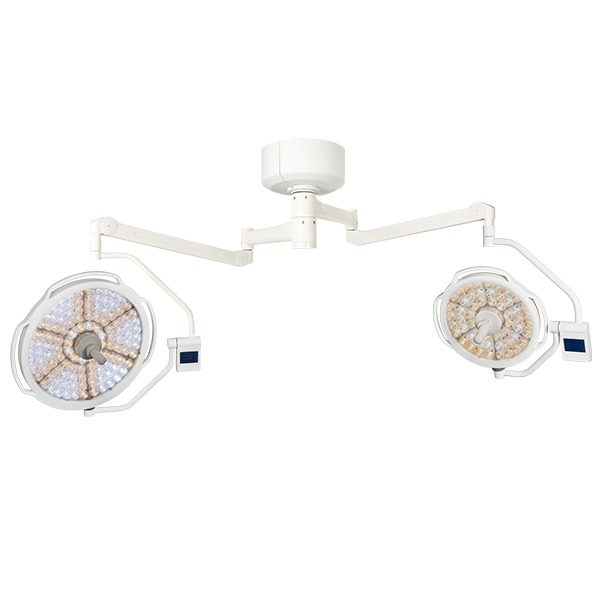

PCB-DCM-160/120
Dual-head ceiling-mounted LED surgical light — primary head 160,000 lux + secondary 120,000 lux, LCD touch control on both arms, German Ondal spring arms, 50,000-hour LED life.
160k + 120k lux
LCD touch (both)
Ondal spring arms
Dual-head shadowless illumination for full OR coverage.
The PCB-DCM-160/120 is a dual-head ceiling-mounted LED surgical light engineered for hospital operating rooms where complete coverage of the surgical field matters. Two independently-positioned LED heads — primary 160,000 lux (120 LEDs) and secondary 120,000 lux (54 LEDs) — work together to eliminate shadows from multiple angles. Combined shadow compensation toggles between 78% and 98% shadowless rates. Each head has its own LCD touch panel for intensity, color temperature, and field-size control. German Ondal spring arms with aluminum main arm hold both heads in any position without drift.
Per-head intensity, color temperature, and field control

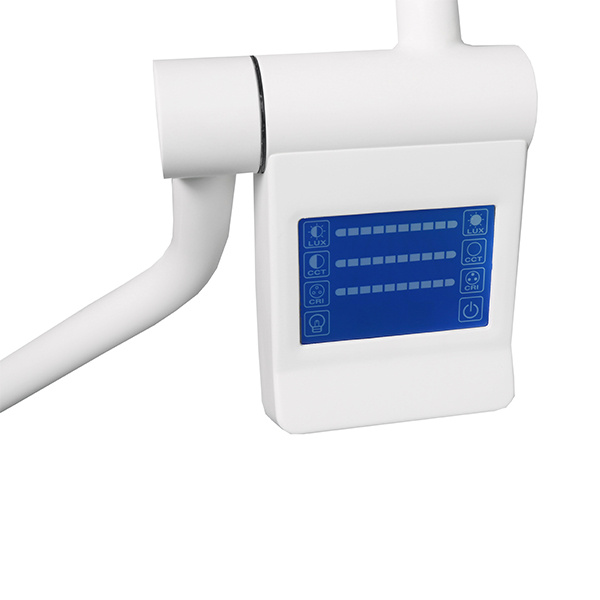

Each dome has an independent LCD touch panel mounted on its yoke. Adjust LUX, CCT (color temperature), CRI, and field size on each head separately — perfect when one head illuminates a cavity and the other a working area. One-touch shadow compensation toggle increases shadowless rate from 78% to 98% when hands and instruments enter the field.
- Independent LCD touch panel per head
- LUX control: 40,000 – 160,000 (head 1) · 40,000 – 120,000 (head 2)
- Color temperature: 3500 – 5000 K (both heads)
- Color rendering index (Ra): 85 – 98
- Shadowless: 78% / 98% (compensation mode)
- Sterile center handle for in-field positioning
Effortless positioning of both heads, anywhere in the OR
German Ondal spring-balanced arms with aluminum main arm hold each head in any position without drift. Sterile center handles for in-field positioning. Optional wireless hand remote controls LUX, CCT, CRI, and on/off for both heads from anywhere in the OR. Optional integrated backup battery keeps illumination during power events.
- German Ondal spring arms · aluminum main arm
- Independent positioning of each head
- Sterile center handle per dome

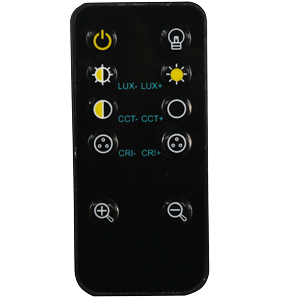

- Optional: wireless hand remote (LUX / CCT / CRI / on-off)
- Optional: integrated backup battery
Built for full OR coverage.
Dual head · 280k lux combined
Primary 160k lux + secondary 120k lux. Two heads work in tandem to eliminate shadows from multiple angles simultaneously.
Shadow compensation 78% / 98%
One-touch toggle increases shadowless rate from 78% standard to 98% when hands and instruments enter the field.
Ondal spring arms
German-engineered spring-balanced arms hold both heads independently without drift. Full reach across the OR table.
Applicable across surgical specialties
Specifications
Complete technical data for the PCB-DCM-160/120 dual-head ceiling LED surgical light.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-DCM-160/120 datasheet in PDF, ready to print or send to your client.
