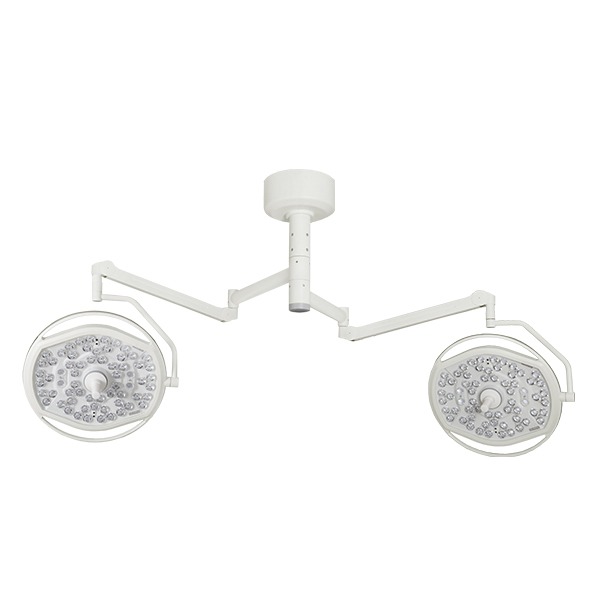

PCB-DCM-160/160 PRO
Premium dual-head ceiling-mounted LED surgical light — twin 160,000 lux heads, OSRAM LED bulbs, CRI ≥ 98, advanced touch control, 60,000-hour LED life. The flagship of the SCM/DCM family.
OSRAM LEDs
CRI ≥ 98
60,000 hr LED
Twin 160,000 lux heads — the premium dual-head OR light.
The PCB-DCM-160/160 PRO is the flagship of the SCM/DCM ceiling-mounted family. Two identical 160,000 lux LED heads, each with OSRAM high-output bulbs delivering CRI ≥ 98 — true tissue color rendering at the highest standard available. Each head positions independently, allowing the surgical team to illuminate two distinct fields simultaneously, or combine both heads into a single deep-cavity field. Color temperature adjustable 3000–5000 K. Advanced touch control. R9 ≥ 98 / R13 / R15 = 99 — exceptional rendering of red tissue and skin tones. 60,000-hour LED service life.
True-color rendering at the highest standard

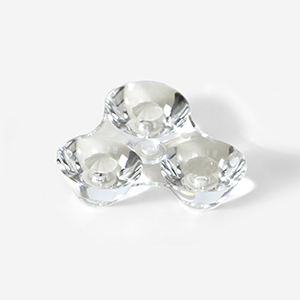

OSRAM high-output LEDs deliver CRI ≥ 98 — substantially above the 85–97 of standard medical LED lights. Special color rendering indices R9 ≥ 98 (red tissue), R13 / R15 = 99 (skin tones, anatomical structures) make tissue appearance natural and consistent under the light. Lamp head diameter 70 cm. 100 VA per head.
- OSRAM premium LED bulbs (64 per assembly)
- Color rendering CRI ≥ 98 (Ra)
- R9 ≥ 98 — exceptional red-tissue rendering
- R13 / R15 = 99 — natural skin tone rendering
- Color temperature 3000–5000 K (adjustable)
- Heat-to-light ratio < 3.6 mW/m²·lux
- Lamp head diameter 70 cm · 100 VA per head
Per-head control of every parameter

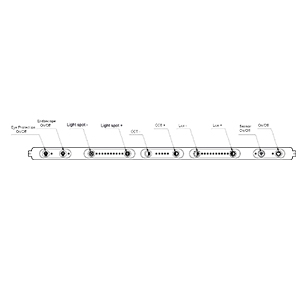

Touch control panel on each head yoke gives one-touch adjustment of light spot size, color temperature (CCT), color rendering (CRI), and on/off. Global voltage compatibility 100–240V 50/60Hz lets the same unit ship anywhere in the world without re-engineering. Light spot 120–350 mm with 1500 mm illumination depth — exceptional reach into deep cavity work.
- Touch control per head: light spot · CCT · CRI · on/off
- Light spot diameter 120–350 mm
- Illumination depth 1500 mm
- Global voltage 100–240V 50/60Hz
- Optional: wireless hand remote
- Optional: integrated backup battery
The flagship of the SCM/DCM family.
Twin 160,000 lux heads
Two identical 160k lux heads — total 320k lux combined output. Illuminate two distinct fields or one deep cavity from multiple angles.
CRI ≥ 98 OSRAM
Premium OSRAM LEDs deliver the highest color rendering available — R9 ≥ 98 for red tissue, R13/R15 = 99 for skin tones.
Global voltage
100–240V 50/60Hz universal. Ship to any market without re-engineering. Touch control panel per head.
Applicable across surgical specialties
Specifications
Complete technical data for the PCB-DCM-160/160 PRO premium dual-head ceiling LED surgical light.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-DCM-160/160 PRO datasheet in PDF, ready to print or send to your client.
