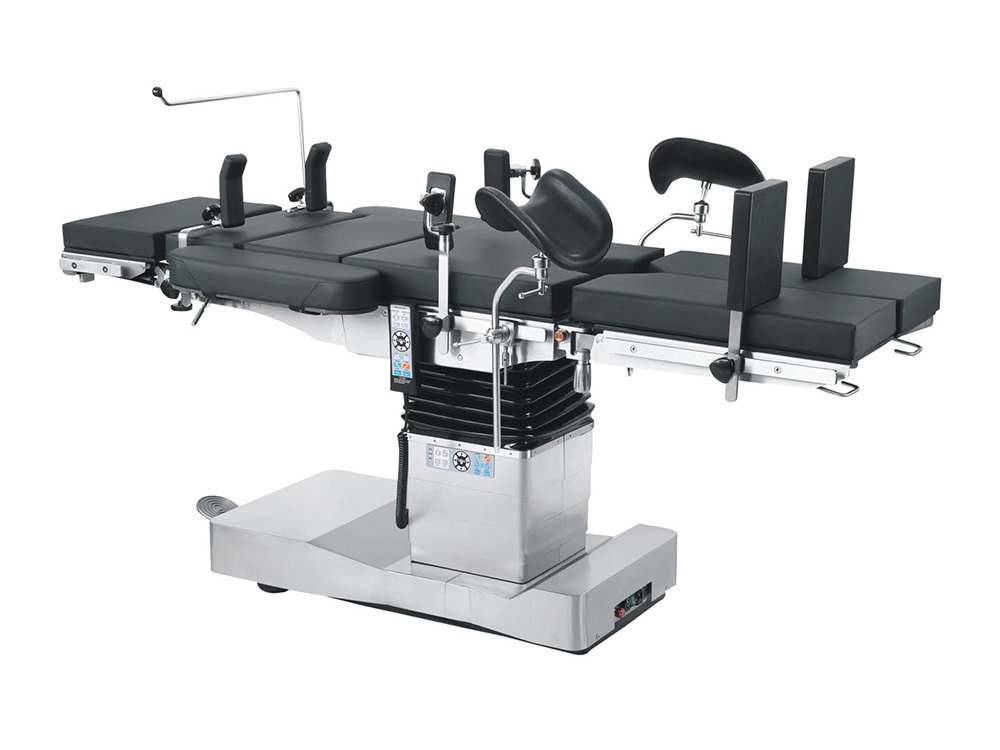

PCB-ET300
Electro-hydraulic operating table with manual override — engineered for every surgical specialty.
Dual control · electric + manual
EASY CLICK modular plates
Engineered for every surgical specialty.
The PCB-ET300 is an electro-hydraulic operating table designed with a double control system — both electric and manual hydraulic control — for reliable operation in any OR environment. Modular EASY CLICK plates, gas-spring head and leg adjustments, and 340 mm of horizontal sliding make it compatible with C-arm imaging, orthopedic traction, and shoulder procedures alike.

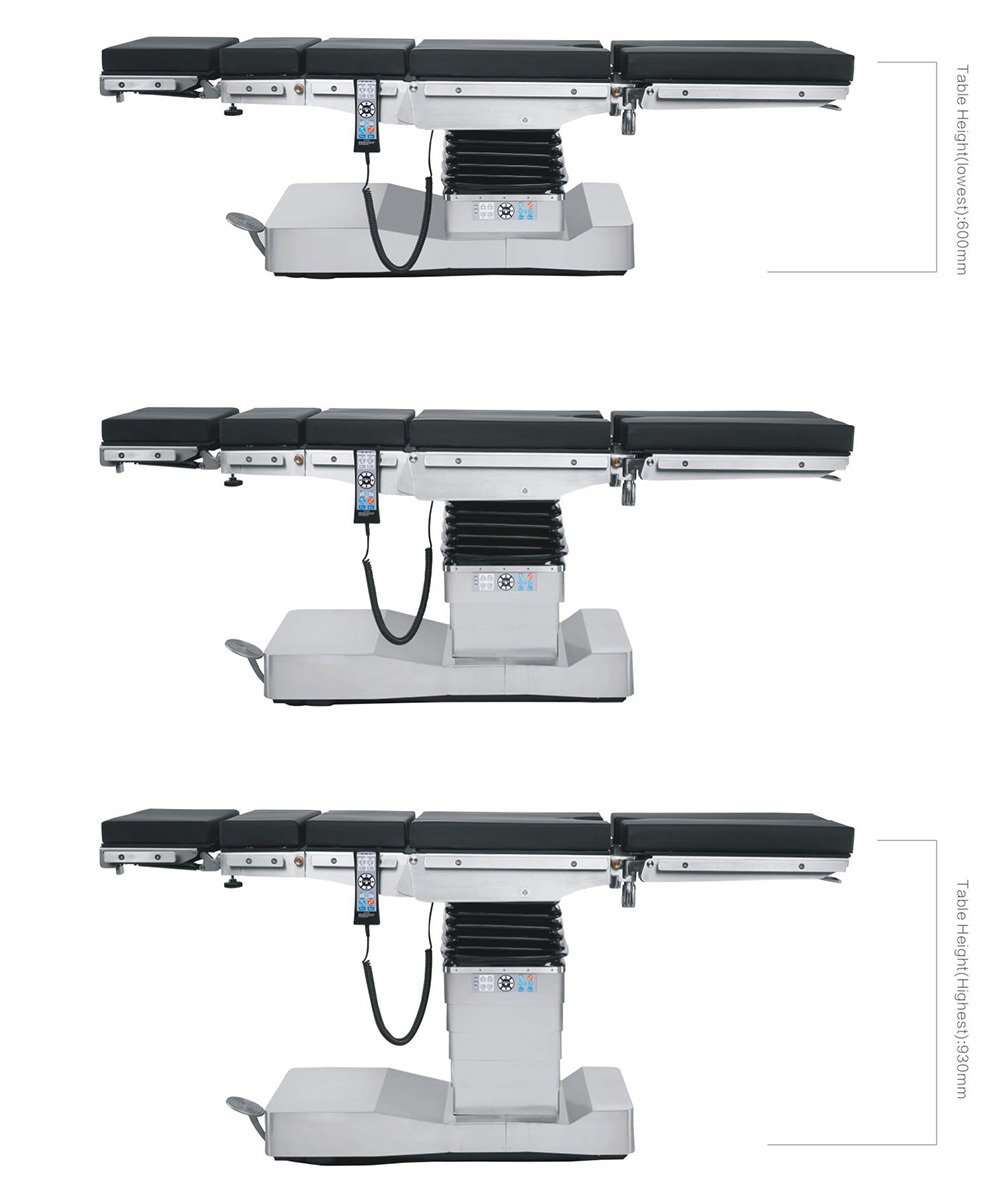

Elevation from 600 to 930 mm
A 330 mm elevation stroke from the lowest patient-transfer height up to the surgeon’s working height — covering every body type and procedure ergonomically.
- Lowest tabletop height: ≤ 600 mm (750 mm optional)
- Highest tabletop height: 930 mm
- Smooth electro-hydraulic lift, holds position under full load

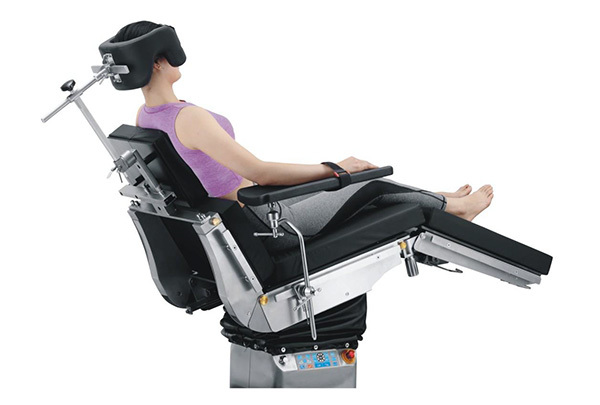

From supine to beach-chair, fluidly
Articulated head, back and leg plates move independently to position the patient for shoulder, abdominal, gynecological, urological, orthopedic and neurosurgical procedures.
- Back plate: 80° up / 40° down
- Head plate: 50° up / 60° down (gas-spring assisted)
- Leg plate: 20° up / 90° down · outward 90°
- Trendelenburg / Reverse Trendelenburg: 30° / 30°
- Lateral tilt: 25° left / right
340 mm horizontal sliding for imaging
Motorized horizontal shift moves the patient relative to the column so the C-arm can scan from head to feet without repositioning. Critical for vascular, orthopedic and trauma cases.
- 340 mm of longitudinal travel
- Compatible with mobile C-arm and X-ray systems
- Radiolucent tabletop section over the imaging zone

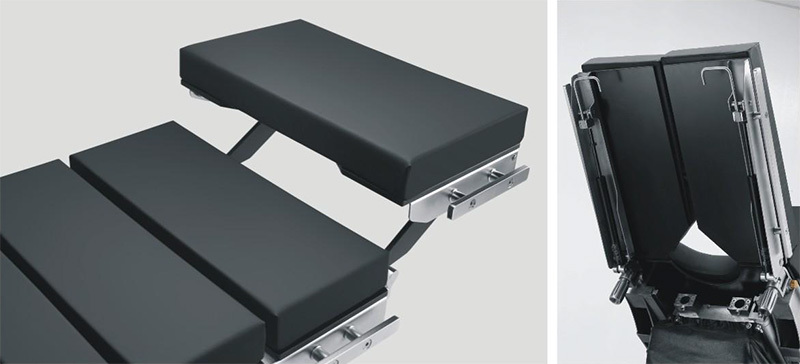

Reconfigure for the next case in seconds
Split-leg plates and back plate disconnect through the EASY CLICK joint — no tools, no waiting. Attach a shoulder surgery device or orthopedic traction frame and you’re ready. Manual hydraulic override stays at hand in case the electric system fails.
- Split-leg plates with single-touch removal
- Modular back plate accepts shoulder surgery devices
- Compatible with orthopedic traction frames
- Manual hydraulic override — backup operation without power
- One-button flex, reflex, and zero-position recovery
- Emergency stop switch (standard)
Specifications
Complete technical data for the PCB-ET300 surgical table.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
