PCB-MSL-160
Mobile single-head LED surgical light on stand — up to 150,000 lux, 72 high-output LEDs, LCD touch control, 60,000-hour LED life. Rolls between operating rooms and procedure suites.
72 LEDs
LCD touch control
Mobile stand
Operating-room performance, on wheels.

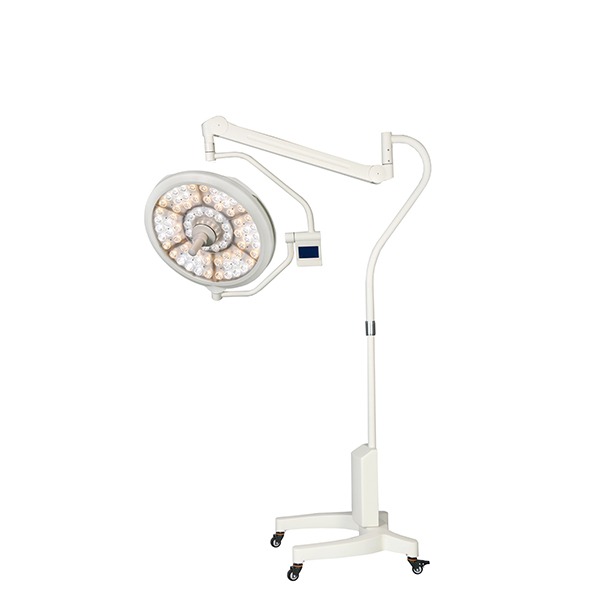

The PCB-MSL-160 is a mobile single-head LED surgical light that rolls between ORs, procedure rooms, and emergency bays. 72 high-output LEDs deliver 60,000–150,000 lux at the working distance with adjustable 3500–5000 K color temperature and CRI 85–97. LCD touch panel on the yoke for one-touch intensity, color temperature, and CRI control. Heavy-duty wheeled stand with lockable casters keeps the lamp stable bedside. Compact footprint fits the smallest procedure room.
OR-grade true-color illumination

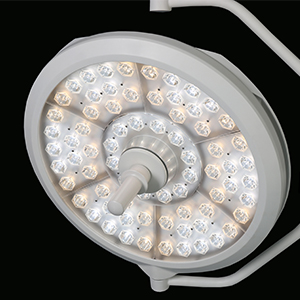

Seventy-two individually-collimated high-output LEDs produce a shadowless, even-illumination spot tuned for tissue color accuracy. CRI 85–97 means oxygenated blood, ischemic tissue, and surgical anatomy appear in their natural color — critical for diagnosis and intraoperative assessment.
- 72 high-output LEDs · 60,000 hr life
- Color rendering index 85–97 (Ra)
- Adjustable color temperature 3500–5000 K
- 60,000 – 150,000 lux at the working distance
- Light spot diameter 120–300 mm
- Illumination depth > 700 mm
Quick adjustment, smooth between-rooms transport

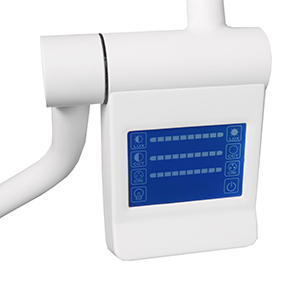

LCD touch panel on the yoke gives one-touch control of LUX, CCT (color temperature), and CRI. Heavy-duty wheeled stand with lockable swivel casters keeps the lamp stable bedside and rolls smoothly between rooms. Articulated arm holds the head in position without drift. Compact footprint fits tight procedure suites.
- LCD touch panel — LUX / CCT / CRI control
- Heavy-duty wheeled stand · lockable swivel casters
- Articulated spring-balanced arm
- Sterile center handle for in-field positioning
- Compact footprint for tight procedure rooms
Built for hospitals that need OR-grade light, mobile.
150,000 lux peak
60,000–150,000 lux range — full operating-room illumination capability in a mobile package.
Goes anywhere
Heavy-duty wheeled stand rolls between OR, procedure room, emergency bay, and recovery — full OR light, anywhere it’s needed.
60,000 hr LED life
Solid-state lighting — no bulb replacement for 6+ years of daily use. Lower total cost of ownership.
Applicable across surgical specialties
Specifications
Complete technical data for the PCB-MSL-160 mobile LED surgical light.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-MSL-160 datasheet in PDF, ready to print or send to your client.
