PCB-SCM-500

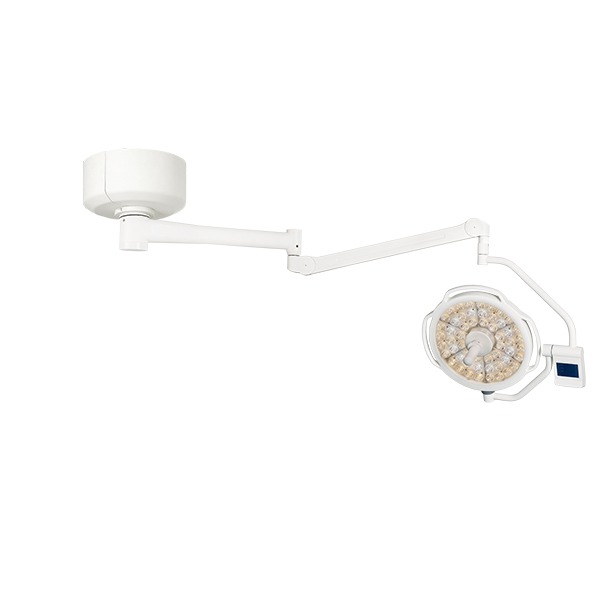

Ceiling-mounted single-head LED surgical light — up to 120,000 lux, 54 high-output LEDs, LCD touch control, German Ondal spring arms, 50,000-hour LED life.
LCD touch control
Ondal spring arms
50,000 hr LED
Operating-room performance in a single-head ceiling light.
The PCB-SCM-500 is a single-head ceiling-mounted LED surgical light engineered for hospital operating rooms, surgical centers, and procedure suites. 54 high-output LEDs deliver 40,000–120,000 lux with adjustable 3500–5000 K color temperature and CRI 85–95 for true tissue color rendering. German Ondal spring arms provide effortless positioning and hold without drift. LCD touch panel on the yoke gives one-touch intensity, color temperature, and field-size control. Low heat-to-light ratio (< 3.6 mW/m²·lux) keeps the surgical field cool during prolonged procedures.
Up to 120,000 lux of true-color light

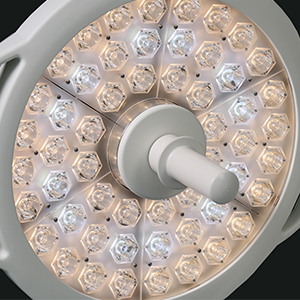

Fifty-four individually-collimated high-output LEDs combine into a single, deep, shadowless surgical field. CRI 85–95 with adjustable color temperature 3500–5000 K means the surgeon sees true tissue color through every phase of the procedure. 78% shadowless rate maintains visibility even when hands or instruments enter the field.
- 54 high-output LEDs · 50,000 hr life
- 40,000 – 120,000 lux at the working distance
- Color rendering index 85–95 (Ra)
- Adjustable color temperature 3500–5000 K
- Light spot diameter 120–350 mm (variable)
- Illumination depth > 700 mm · shadowless rate 78%
Effortless positioning, instant adjustment

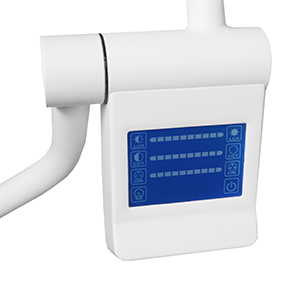

German Ondal spring-balanced arms with aluminum main arm hold the head in any position without drift. Sterile-handle on the yoke lets the surgeon reposition the light from the field. LCD touch panel adjusts intensity, color temperature, and field size in one tap. Optional wireless hand remote and backup battery available.
- German Ondal spring arms · aluminum main arm
- LCD touch screen on the yoke
- Sterile center handle for in-field positioning
- Optional: wireless hand remote
- Optional: integrated backup battery
Built for hospital operating rooms.
120,000 lux peak
Adjustable 40,000–120,000 lux range covers every phase of surgery — from delicate microsurgical work to deep cavity exposure.
Ondal spring arms
German-engineered spring-balanced arms with aluminum main arm. Smooth repositioning, holds position without drift, full reach across the OR table.
Cold light · 54 W
Heat-to-light ratio < 3.6 mW/m²·lux. Only 54 W power consumption. No surgeon discomfort, no field heating during long procedures.
Applicable across surgical specialties
Specifications
Complete technical data for the PCB-SCM-500 ceiling-mounted LED surgical light.
Manufactured under ISO 13485
ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.
✓ ISO 9001
✓ ISO 13485
Product brochure
Complete PCB-SCM-500 datasheet in PDF, ready to print or send to your client.
