PCB-VIEW-01
Clarity in challenge — premium trolley Color Doppler with AI+.

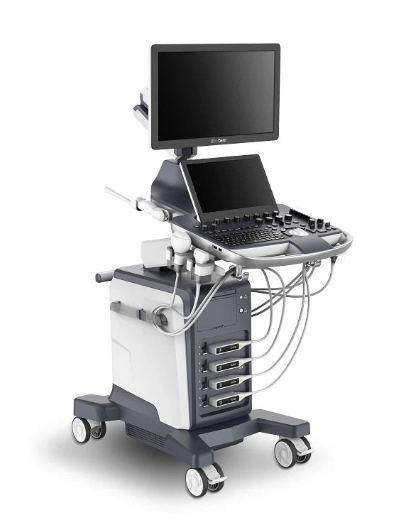

The PCB-VIEW-01 is a full digital Color Doppler ultrasound trolley system, engineered for hospital departments demanding the highest imaging fidelity and AI-assisted workflow. Powered by the Metadata Beamforming metadata beamforming platform (CPU + GPU + FPGA) with +50% computational speed and +30% heat-dissipation efficiency, it delivers Supreme Imaging across cardiology, vascular, OB/GYN, abdomen, MSK and pediatrics.
Equipped with a 21.5″ rotating Medical Display, a 13.3″ high-sensitivity touch screen, an adjustable motorized console, 4 activated transducer connectors, a detachable gel-warming cup, 1TB hard disk, DVD-R/W and 6 USB ports — the PCB-VIEW-01 streamlines every step of the exam workflow. Smart Matrix AI+ delivers automated diagnostic tools for ICU, vessel/MSK and pediatrics, while Remote Imaging Platform (optional) enables real-time remote ultrasound diagnosis worldwide.
7 special transducer bundles.
Config 1 · Standard
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
Config 2 · + Transvaginal
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
+1 pc 6E1CDS Transvaginal
Config 3 · + Cardiac
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
+1 pc 3P2CA Phased Array
Config 4 · TV + Cardiac
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
+1 pc 6E1CDS Transvaginal
+1 pc 3P2CA Phased Array
Config 5 · 4D OB/GYN
+1 pc 3C6CD Convex
+1 pc 6E1CDS Transvaginal
+1 pc 4V4CD Volume (4D)
Config 6 · 4D General
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
+1 pc 4V4CD Volume (4D)
Config 7 · Full Package
+1 pc 3C6CD Convex
+1 pc 7L4CD Linear
+1 pc 6E1CDS Transvaginal
+1 pc 4V4CD Volume (4D)
Add any probe to your configuration.
Convex Transducer
Model 3C6CD
Abdomen · OB · Gynecology · Urology · General
Linear Transducer
Model 7L4CD
Vascular · Thyroid · Breast · MSK · Superficial
Transvaginal Transducer
Model 6E1CDS
Endocavity OB/GYN · IVF · Early pregnancy
Phased Array Transducer
Model 3P2CA
Adult + Pediatric Cardiac · includes Extended Cardiac Package FREE
4D Volume Transducer
Model 4V4CD
Volumetric 4D OB/GYN · includes 4D Live Rendering 2.0 FREE
Microconvex Transducer
Model 6C1CD
Pediatric / Neonatal abdomen · Cardiac · Superficial
Complete your system.
Battery Package
Built-in order before delivery — for outreach and bedside scanning without AC power.
ECG Module
Built-in order before delivery — for synchronized ECG tracing during cardiac exams.
Puncture Guide ZNG-07
For 3C6CD Convex transducer — abdominal biopsy & guided intervention
Puncture Guide ZNG-08
For 7L4CD Linear transducer — breast / thyroid / lymph node biopsy
Puncture Guide ZNG-09
For 6E1CDS Transvaginal transducer — oocyte retrieval, gynecology intervention
Foot Switch
Hands-free freeze / capture / parameter toggle — sterile procedures
Video Printer
High-resolution thermal video printer — on-the-spot B-mode / Color / Doppler print
Elastography
Strain elastography software — only available with Linear Transducer
Extended Cardiac Package
Free Steering M + Color M — FREE when ordering with Phased Array transducer
4D Live Rendering 2.0 Rendering
4D lighting render module — FREE when ordering with 4D Volume transducer
DICOM 3.0 Package
Full DICOM 3.0 — Store · Print · Worklist · Storage Commitment · MPPS
Remote Imaging Platform (optional)
Remote ultrasound system — real-time consultation, live teaching, training, AI-assisted smart diagnosis
Efficient and fast workflow.
Premium trolley platform engineered for high-volume hospital workflow — adjustable motorized console, dual displays, integrated gel warmer and four universal transducer connectors.
21.5″ / 23.8″ Medical LCD
Rotatable, stretched and folded medical-grade LCD monitor — multi-angle adjustment for any operator position.

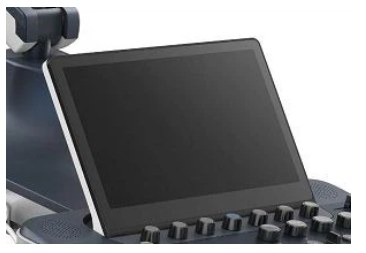

13.3″ High-sensitivity touch screen
55° max reversible touch screen with multi-angle adjustment — fast access to imaging modes and AI tools.
Motorized adjustable console
Adjustable console height and keyboard rotation — supports multi-directional adjustment for seated or standing operation.

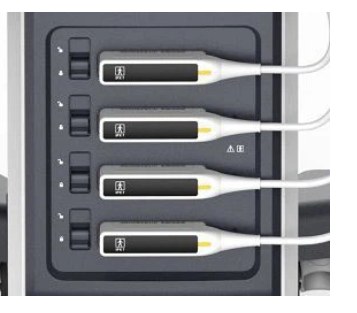

4 universal transducer connectors
Four activated probe connectors — keep all your transducers plugged in and switch instantly between exam types.
Replaceable probe holder
Replaceable probe holders including exclusive holder for endocavity transducer — easy cleaning and disinfection.
Detachable gel warmer
Detachable coupling agent heating cup — 37 °C / 40 °C optional — improved patient comfort.
Connectivity & storage
1 TB hard disk · DVD-R/W · 6 USB ports
Interfaces: Video · S-Video · HDMI · DVI · VGA · RS-232 · Ethernet · Audio in/out · DICOM 3.0 · Printer
Supreme Imaging hardware
3× CPU · 16 GB RAM · 1 TB Storage
Faster mode switching, faster Doppler refresh, smoother real-time imaging.
The technology that powers PCB-VIEW-01.
The PCB-VIEW-01 is built on the brand-new Metadata Beamforming metadata beamforming imaging technology platform — developed on CPU + GPU + FPGA heterogeneous computing architecture for hospital-grade Color Doppler performance. Images are saved as raw metadata for offline parameter adjustment after the exam.
Metadata Beamforming metadata beamforming
CPU + GPU + FPGA heterogeneous computing — +50% computational speed and +30% heat-dissipation efficiency over the previous generation.
PIHI · Pulse Inverse Harmonic Imaging
Reduces distortion of the fundamental wave and greatly improves signal-to-noise ratio — sharper images in technically difficult patients.
Advanced Speckle Reduction · Speckle reduction
Significantly reduces unwanted speckle while preserving tissue boundary and tissue echo — cleaner background for confident clinical diagnosis.
FCI · Frequency Composite Imaging
Combines fundamental and harmonic frequencies to improve detail and contrast resolution across the full depth range.
SCI · Spatial Compound Imaging
Better contrast resolution, reduced speckle noise, smoother homogeneous tissue imaging.
EFOV · Panoramic Imaging
Extended field-of-view panoramic stitching with +30% stability — whole-organ visualization in one image.
Strain Elastography Elastography
Strain elastography +50% sensitivity improvement — breast, thyroid, lymph node, MSK applications.
Glazing Flow · DPDI · Contrast
Glazing Flow, Directional Power Doppler, contrast-enhanced ultrasound, Color M-Mode (CMM) — comprehensive Doppler toolkit.
Solving daily pain points for doctors.
ICU · Fast diaphragmatic + cardiac
One-click diaphragmatic and cardiac parameters — faster weaning decisions and bedside cardiac assessment.
Vessel + MSK · Easy
AI-guided vessel and musculoskeletal identification — 50% shorter learning curve for new operators.
Pediatrics · Accurate
AI hip measurements (Auto Hip), 40% higher repeatability, fewer missed or incorrect diagnoses.
Cardiovascular AI
Auto EF · Auto VTI · Auto IVC · Auto Vascular · Auto LV · CW · TDI · IMT · RIMT.
OB & GYN AI
Smart OB · Auto NT · Smart 3D · Auto Face · 4D Live Rendering 2.0 · Basin bottom measurement · 3D/4D.
Other AI Solutions
Auto HRI · Auto Bladder · Auto B-Line · Auto Hip · Auto Diaph · Smart Nerve · Smart SMK.
Your invisible assistant.
Fewer Clicks, More Patients
Dynamic Preview + Quick Recall — reduces steps by 60%, enabling more exams per shift.
Secure Instant Sharing
QR code and Bluetooth PDF transfer enable remote expert guidance in real time — between exam rooms, departments and facilities.
Beginners Become Experts
18 teaching planes + magnifier make scans precise and easy. Ultrasound Assistant 2.0 + 5×5 cm Magnifier.
PCB Workflow Assistant streamlined workflow
PCB Workflow Assistant system streamlines ultrasound examinations — protocol-driven exam sequences, auto-saved measurements, structured reports.
Professional remote ultrasound solution.
Redefining ultrasound diagnostics — enabling real-time expert support anytime, anywhere. Primary hospitals can initiate remote consultations through Remote Imaging Platform; specialists can view live ultrasound images and guide on-site doctors in real time.
Five Key Technical Advantages
• High transmission speed, low latency (<200 ms)
• Dual-way control
• Compatible with all major brands
• Compatible with Windows, Android, iOS
• Data security
Seven Key Functions
• Real-time expert consultation
• Asynchronous diagnosis
• AI-assisted smart diagnosis
• Remote scan guidance & control
• Image quality assurance
• Remote training & education
• Remote service & support
Remarkable performance across specialties.
The PCB-VIEW-01 provides remarkable performance in Abdomen, OB/GYN (incl. endocavity), Cardiology, Vascular, Urology, Small parts (Breast, Thyroid, etc.), Musculoskeletal, Pediatrics, ICU and Neurological intervention.
Imaging modes: B · 2B/4B · M · AMM · Curved AMM · CM · CDFI · PDI · DPDI · CW · PW · TDI · 3D/4D · Glazing Flow
Measurement packages: Abdomen · OB & GYN · Cardiac · Vascular · Urology · Small organ
Modules: 4D module + CW module
Image technologies: EFOV · Panoramic · Strain Elastography · SCI · FCI · Advanced Speckle Reduction · PIHI · THI · TSI · Contrast-enhanced · IMT · RIMT · HR-Flow · Micro Blood Flow Imaging
Sample scans.

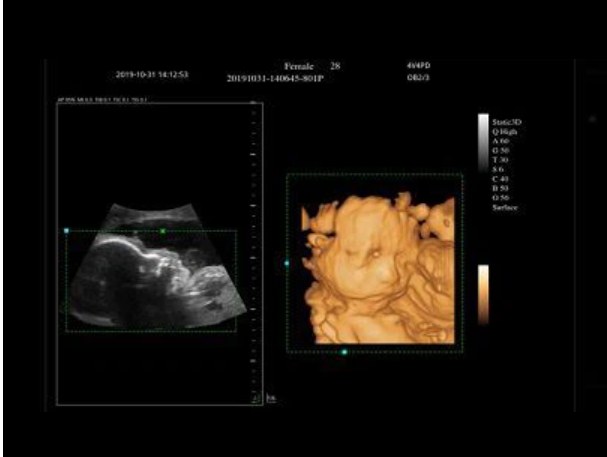

3D / 4D Fetal
Early Pregnancy
Auto HRI / Bladder

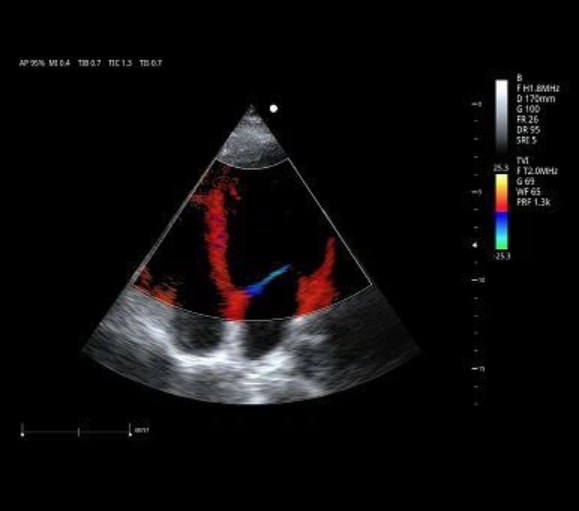

Carotid Color Flow

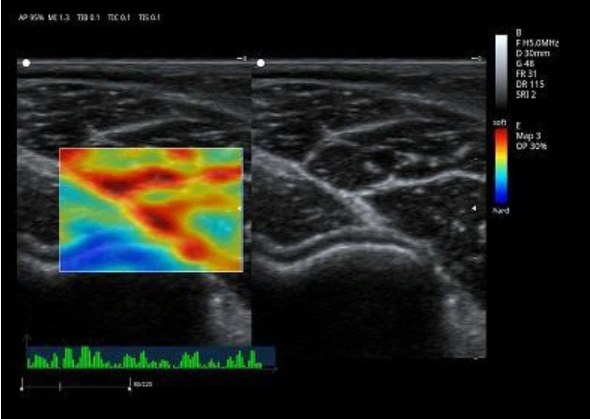

Strain Elastography Elastography

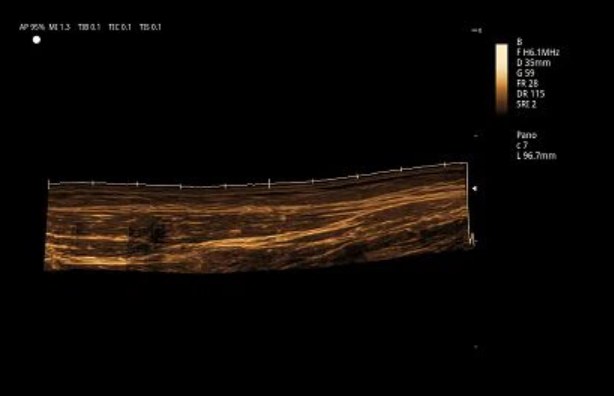

EFOV Panoramic

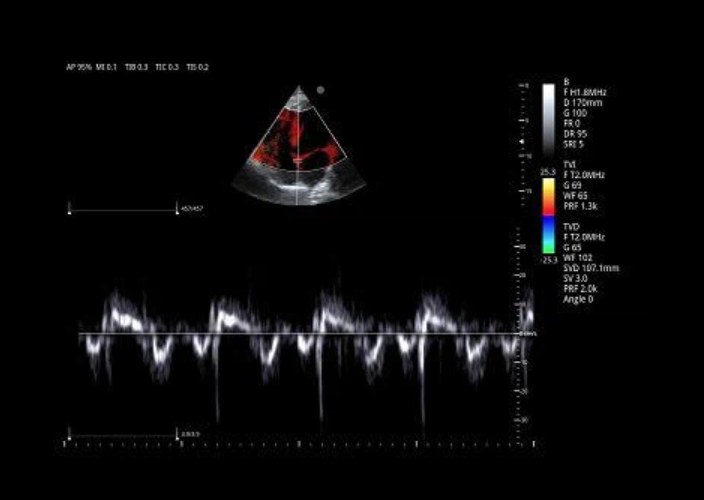

Cardiac TDI

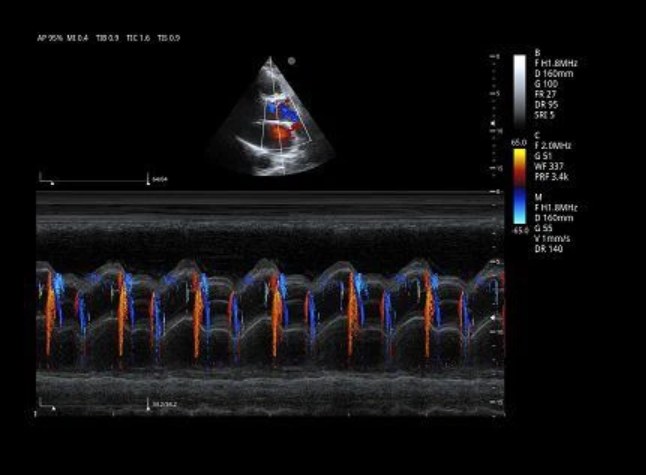

Cardiac PW Doppler

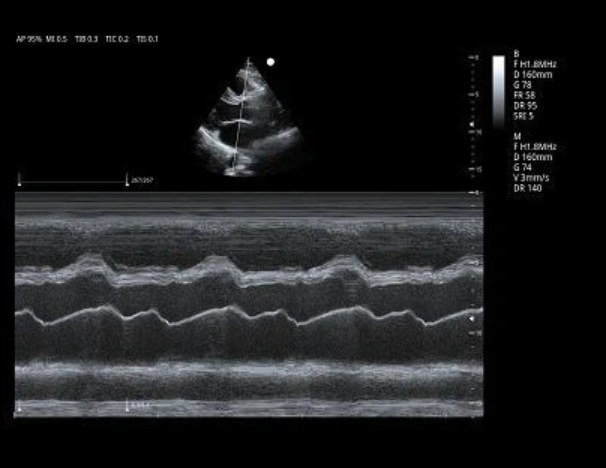

Cardiac M-Mode (AMM)

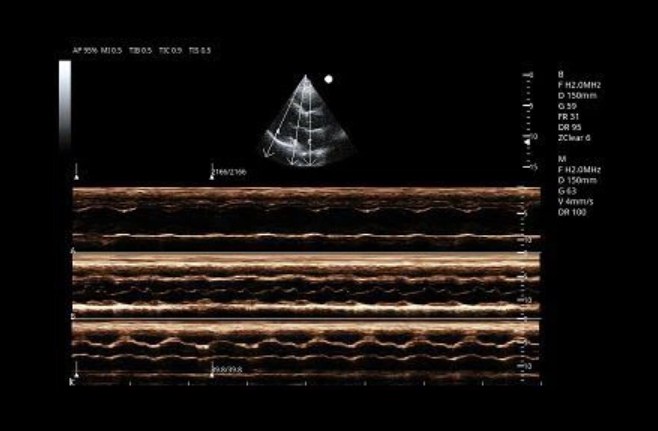

Color M-Mode (CMM)
Factory warranty coverage.
2 years · Main Unit
2-year factory warranty on the PCB-VIEW-01 main unit from ex-factory date.
1 year · Transducers + Battery
1-year factory warranty on transducers and lithium battery from ex-factory date.
Manufactured under ISO 13485
The PCB-VIEW-01 is manufactured under ISO 13485 certification, with CE mark for the European market. Every unit passes a full safety + functional test before shipping. Main unit: 2-year warranty from ex-factory date. Transducers + battery: 1-year warranty.
