PCB-VIEW-04
Comprehensive color-Doppler imaging in a premium ergonomic console.

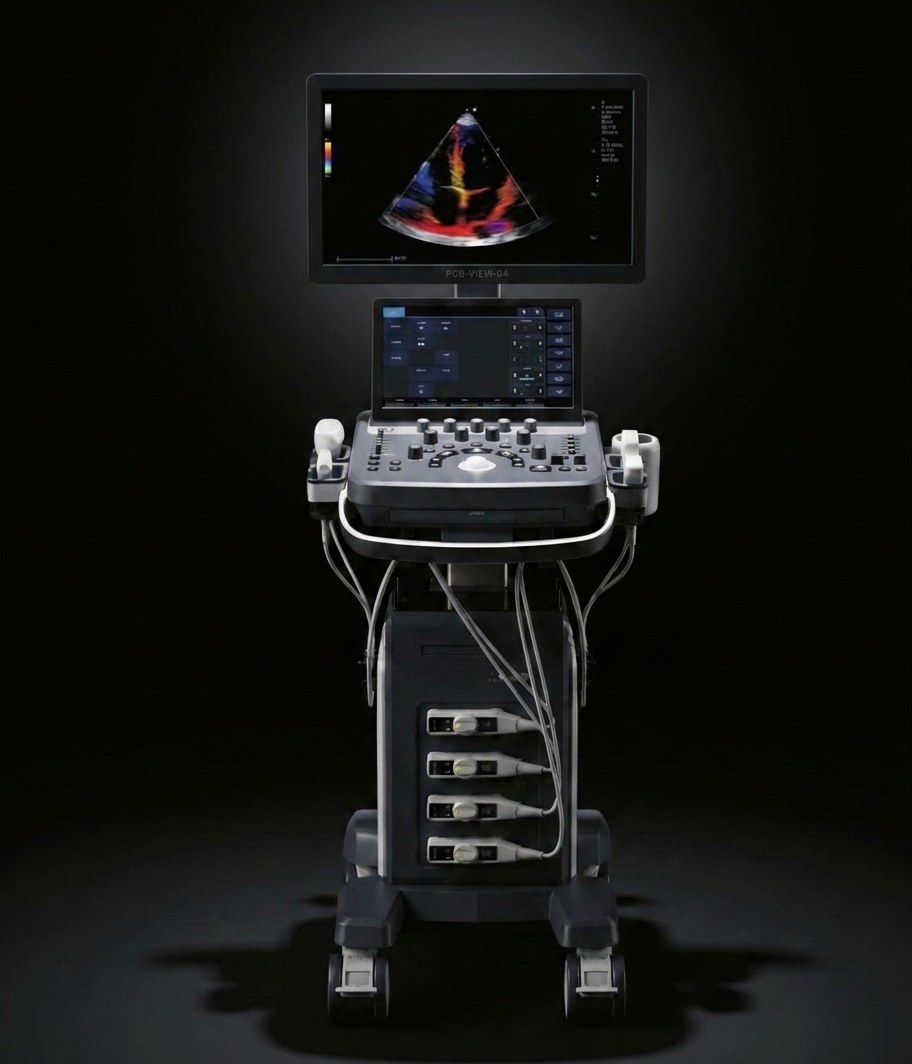

The PCB-VIEW-04 Full Digital Color Doppler Ultrasound System is a premium imaging platform engineered for radiology, cardiology, OB/GYN, vascular, urology, musculoskeletal and neurological intervention. It is built around Metadata Beamforming metadata beamforming — a CPU + GPU + FPGA heterogeneous computing architecture that increases computational speed by 50% and heat-dissipation efficiency by 30% over the previous generation.
The console pairs a 21.5″ medical-grade LCD (angle-adjustable, foldable) with a 13.3″ high-sensitivity touchscreen (50° adjustable) above a motorized height-adjustable, rotation-friendly control panel. Four universal probe connectors, a detachable gel-warming cup (37°/40°), 1 TB hard disk, integrated DVD-R/W and full I/O (HDMI, DVI, VGA, S-Video, RS-232, Ethernet, DICOM 3.0, Printer) make the unit ready for any clinical workflow.
The system ships with two transducers as standard — 3C5PDS convex and 7L4PDS linear — plus 4D + CW modules pre-installed. AI-powered automatic measurements (Auto EF, Smart OB, Auto NT, Intelligent follicle, MicroFlow Imaging) and the personalized PCB Workflow Assistant deliver fast, repeatable exams. Remote Imaging Platform (optional) enables real-time remote consultation, training and after-sales support across distances.
Engineered around the Metadata Beamforming beamforming platform.
Metadata Beamforming — the next-generation imaging engine.
Metadata Beamforming metadata beamforming
Brand-new platform developed on CPU + GPU + FPGA heterogeneous computing. Images are saved as metadata for post-processing — you can re-tune gain, dynamic range, color and Doppler parameters AFTER the patient has left the room.
Upgraded performance
+50% computational speed and +30% heat-dissipation efficiency compared to the previous-generation platform. Result: more stable real-time imaging, lower fan noise, longer service life.
PIHI · Pulse Inverse Harmonic Imaging
Reduces distortion generated by the fundamental wave and greatly improves the signal-to-noise ratio — sharper images in technically difficult patients.
SCI · Spatial Compound Imaging
Provides better contrast resolution, reduces speckle noise and smooths the imaging of homogeneous tissue — cleaner liver, breast, thyroid, vascular views.
Advanced Speckle Reduction speckle reduction
Significantly reduces unwanted speckle while preserving tissue boundary and tissue echo — confident clinical diagnosis with cleaner background.
Raw data + post-processing
Metadata storage means you can adjust parameters and re-generate reports OFFLINE after the exam — consistent quality, repeatable measurements, no need to recall the patient.
Automated measurements across specialties.
AMM · Anatomical M-Mode
Place up to three sampling lines at any angle. Facilitates multi-directional observation of ventricular wall movement.
Auto EF
Automatic recognition of the cardiac chamber during diastolic and systolic periods. Calculates ejection fraction automatically — reduces operator dependency and improves work efficiency.
Auto OB
Automatic identification of obstetric standard sections and automatic measurement of BPD, HC, AC, FL and other biometric parameters.
Auto Follicle
Automatic identification and calculation of follicle size in real time — critical for IVF cycle monitoring and fertility workups.
4D Live Rendering · 4D rendering
Leveraging ray-casting and innovative virtual lighting, 4D Live Rendering renders highly realistic fetal visuals featuring lifelike skin textures.
MicroFlow Imaging + HR-Flow
Enhances visualization of micro-vascular or complex flow patterns, especially in small vessels — thyroid nodule characterization, tumor vascularity, plaque assessment.
Built to fit any exam room.

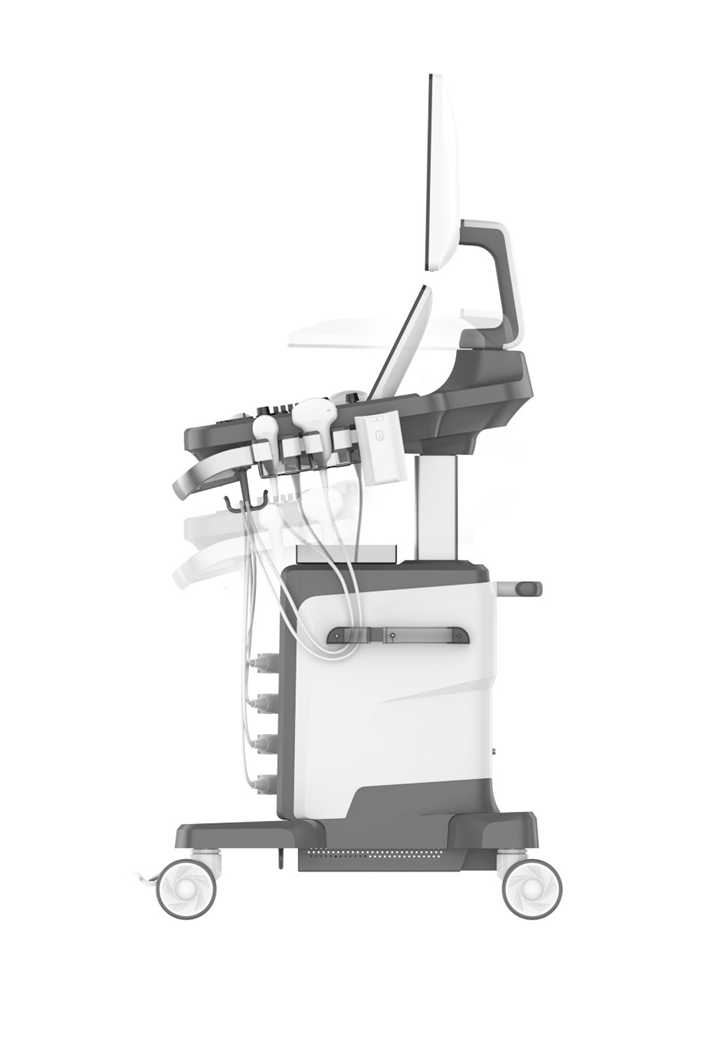

Adjustable console + foldable display
Motorized height-adjustable control panel, rotation-capable keyboard and foldable 21.5″ medical display let the sonographer work in any position — sitting, standing, bedside or in a tight bay.
Splash-resistant panel · cable management
Splash-resistant protection film on the panel enables reliable cleaning and disinfection between patients. Integrated cable management keeps probe cables off the floor.
4 universal active connectors
Four activated transducer connectors mean up to four probes are always plugged in — switch from convex to linear to phased-array to transvaginal with a single tap on the touchscreen.
13.3″ high-sensitivity touchscreen
Responsive touchscreen for fast probe switching and parameter adjustments. Multi-function efficient touch screen with Clipboard, QSave, Station and user-defined buttons.
PCB Workflow Assistant personalization
Automated personalized workflow protocol — configure exam routines per sonographer or per specialty for a workflow suited to your team’s habits.
Detachable gel warmer
Detachable coupling-agent heating cup with selectable 37° / 40° temperature — patient comfort + faster scanning in cold rooms.
Standard configuration plus 4 optional probes.
3C5PDS Convex (standard)
General-purpose convex transducer included with every PCB-VIEW-04. Covers abdomen, OB, gynecology, urology and general scanning.
7L4PDS Linear (standard)
Linear-array transducer included as standard for vascular (carotid, peripheral), thyroid, breast, small parts, MSK and superficial structures.
6E1PDS Transvaginal (optional)
Endocavity transducer for transvaginal OB/GYN exams — early-pregnancy assessment, gynecology, IVF follicle monitoring. Compatible with ZNG-09 puncture guide.
3P2PA Phased Array (optional)
Adult and pediatric cardiac imaging. Bundles the Extended Cardiac Package (Free Steering M, Color M) at no charge.
4V4CDS 4D Volume (optional)
Volumetric 4D obstetric / gynecologic imaging. Bundles 4D Live Rendering lighting rendering at no charge.
6C1PD Microconvex (optional)
Microconvex transducer for pediatric / neonatal abdomen, cardiac and superficial scanning where a small footprint is required.
Configure the workflow you need.
Built-in battery package
Integrated lithium battery (built-in by order before delivery) for bedside / inter-room use without unplugging.
ECG module
Integrated ECG module (built-in by order before delivery) for cardiac exams synchronized with ECG trace.
Puncture guides (ZNG-07 / 08 / 09)
Dedicated puncture brackets for the 3C5PDS convex (ZNG-07), 7L4PDS linear (ZNG-08) and 6E1PDS transvaginal (ZNG-09) probes — for guided biopsy and interventional procedures.
Foot switch
Hands-free foot switch for image freeze, capture and parameter toggle — useful during sterile interventional procedures.
High-resolution thermal video printer
High-resolution thermal video printer for on-the-spot image printing of clinical-grade B-mode, Color and Doppler captures.
Elastography (linear only)
Software package for tissue stiffness measurement with the 7L4PDS linear transducer — breast, thyroid, lymph node, MSK applications.
DICOM 3.0 Package
Full DICOM 3.0 connectivity package for PACS/HIS integration — Store, Print, Worklist, Storage Commitment, MPPS.
Remote Imaging Platform (remote)
Independently developed remote ultrasound system enabling real-time sharing and interaction of images across distances — supports remote consultation, live teaching, remote guidance, training and after-sales support.
Comprehensive clinical capability.

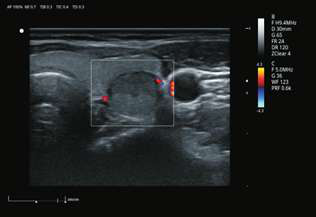

MicroFlow Imaging · Radiology
Micro-vascular flow visualization in small vessels — thyroid nodule characterization, hepatic perfusion, plaque assessment.

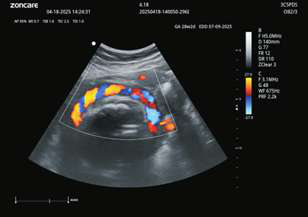

Intelligent blood flow tracking
Intelligently identifies the location of blood vessels. Continuous tracking of blood flow, supporting real-time optimization to achieve better blood flow optimization.
AMM · Anatomical M-Mode
Up to three sampling lines placed at any angle for multi-directional ventricular wall movement analysis.
Auto EF · Cardiology
Auto recognition of the cardiac chamber during diastolic + systolic periods; auto ejection-fraction calculation reduces operator variability.
Auto OB · Obstetrics
Auto identification of obstetric standard sections + auto biometry (BPD, HC, AC, FL).
Auto Follicle · Gynecology
Auto identification and size calculation of ovarian follicles — speeds up IVF cycle monitoring.
4D Live Rendering · 4D rendering
Ray-casting + innovative virtual lighting produces highly realistic fetal visuals with lifelike skin texture.
Obstetrics
Gynecology (Endocavity)
Thyroid
Breast
Urology
Cardiac (Adult + Pediatric)
Vascular (Carotid, Peripheral)
Small Parts
Musculoskeletal
Neurological Intervention
Emergency
Remote Diagnosis
Manufactured under ISO 13485
The PCB-VIEW-04 is manufactured under ISO 13485 certification, with CE mark for the European market. Every unit passes a full safety + functional test before shipping. The main unit carries a 2-year warranty from ex-factory date; transducers and battery carry a 1-year warranty.
✓ ISO 13485
✓ 2-year warranty
Product brochure
Complete PCB-VIEW-04 data sheet in PDF, ready to print or send to your customer.
