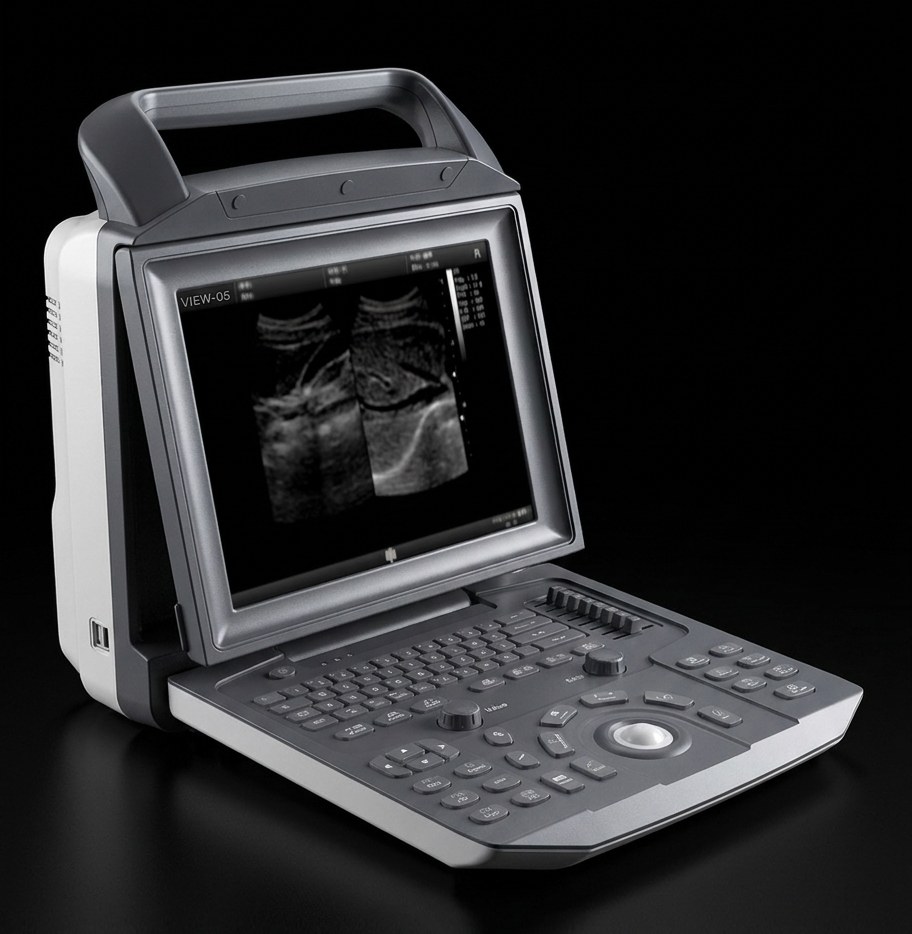

PCB-VIEW-05
Hospital-grade ultrasound imaging in a portable footprint.
The PCB-VIEW-05 Full Digital B/W Ultrasound brings hospital-level imaging quality to primary care, outpatient clinics, ambulatory surgery centers and bedside use. Built on exclusive double-waveform imaging technology and shipped with a 3C5OA convex transducer, a built-in lithium battery and a full I/O suite (USB, Video, VGA, Equipotential, Printer), it is field-ready out of the box.
A 12″ high-definition LCD monitor with 75° maximum adjustable angle sits above a backlit keyboard and an all-round adjusting knob, delivering efficient, fast and ergonomic operation in any environment. Imaging modes include B, 2B/4B, M, B/M and PW Doppler with full-screen spectrum, biopsy guidance, OB and PW modules and a comprehensive measurement software package (General, OB&GYN, Cardiac).
Weighing only 6.2 kg with raw data storage for offline reporting and one-click automatic parameter reset, the PCB-VIEW-05 is a true portable system that scales from solo clinics to teaching hospitals. The unit ships with a 2-year warranty from the ex-factory date.
Built for portable diagnostic imaging.
Engineered for everyday diagnostic confidence.
Double-waveform imaging
Exclusive double-waveform imaging technology delivers crisp, consistent B-mode resolution. THI and TSI enhancement refine tissue detail and Doppler sensitivity across abdomen, vascular, OB/GYN, urology, cardiac, small parts and MSK studies.
PW Doppler with full-screen spectrum
Pulsed-wave Doppler with full-screen spectrum display for vascular and cardiac flow assessment. OB and PW modules are bundled with the standard unit — ready for routine OB exams from day one.
6.2 kg · battery-ready out of the box
At just 6.2 kg with a built-in lithium battery as standard equipment, the PCB-VIEW-05 moves between rooms, floors and outreach campaigns — no separate battery purchase required.
Raw data + one-click reset
Raw data storage lets you adjust parameters and regenerate reports offline after the exam. One-click automatic parameter reset returns the unit to baseline between patients — faster, more consistent workflow.
Configure the probe set for your clinical mix.
3C5OA Convex (standard)
General-purpose convex transducer included with every PCB-VIEW-05. Covers abdomen, OB, gynecology, urology and general scanning.
7L4OA Linear (optional)
Linear-array transducer for vascular (carotid, peripheral), small parts (thyroid, breast, testis), MSK and superficial structures.
6E1OA Transvaginal (optional)
Endocavity transducer for transvaginal OB/GYN exams — early-pregnancy assessment, gynecology, IVF follicle monitoring.
6C15A Microconvex (optional)
Microconvex transducer for pediatric / neonatal abdomen, cardiac and superficial scanning where a small footprint is required.
Build the workflow you need.

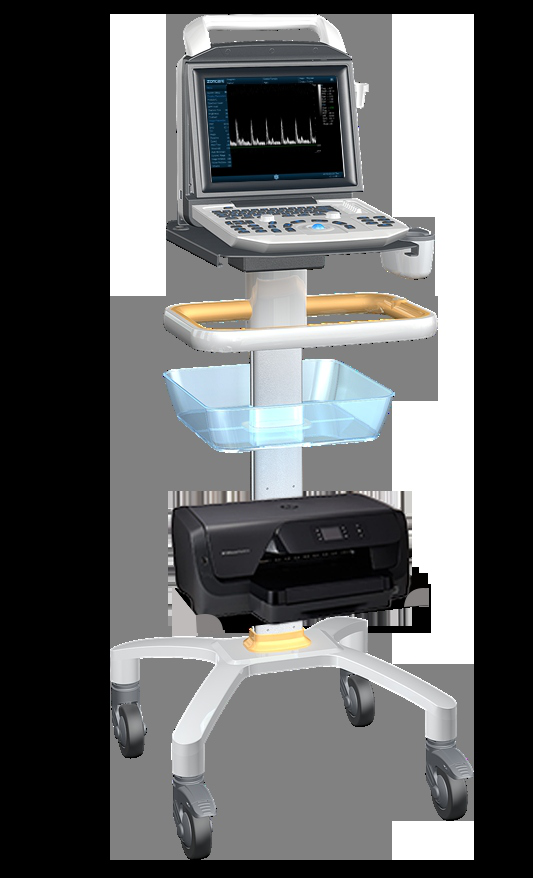

Customized trolley
Mobile trolley holds the scanner at ergonomic working height and provides storage for gel, probes and accessories.
Carrying bag
Padded carrying bag for outreach campaigns, in-home visits and inter-site transport. Protects the unit and all standard accessories during transit.
High-resolution thermal video printer
High-resolution thermal video printer for on-the-spot image printing of clinical-grade B-mode and Doppler captures.
Compact B/W laser printer
Laser printer for full-page B/W exam reports generated by the PCB-VIEW-05 reporting software.
Sample scans across specialties.
Carotid (CCA) · PW Doppler
Pulsed-wave Doppler spectrum of the common carotid artery — demonstrates the unit’s vascular capability with a linear transducer (7L4OA).

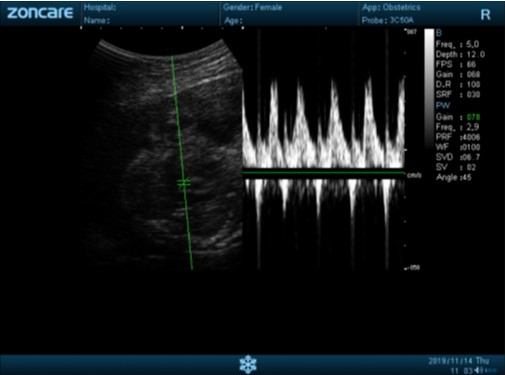

Portal vein · PW
Portal venous flow with PW Doppler tracing — classic hepatic and abdominal vascular assessment with the standard 3C5OA convex.
Palmar vessels · PW
Superficial palmar vessels imaged with PW Doppler — small-parts and MSK use case (linear transducer).

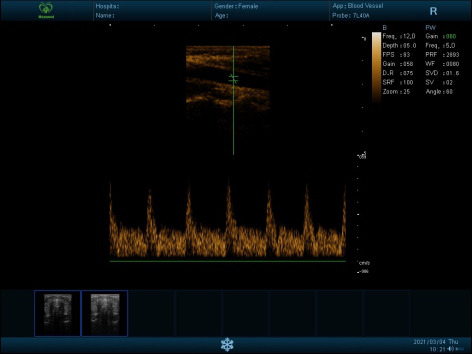

Liver-Kidney · B-mode
Right upper quadrant B-mode of the liver-kidney interface — classic primary-care abdominal view with the standard convex.
Obstetrics
Gynecology
Urology
Cardiac
Small Parts
Vascular
Orthopedics
Emergency
Manufactured under ISO 13485
The PCB-VIEW-05 is manufactured under ISO 13485 certification, with CE mark for the European market. Every unit passes a full safety + functional test before shipping and carries a 2-year warranty from ex-factory date.
✓ ISO 13485
✓ 2-year warranty
Product brochure
Complete PCB-VIEW-05 data sheet in PDF, ready to print or send to your customer.
