PCB-VIEW-07
Master choice on portability — laptop-style Color Doppler.

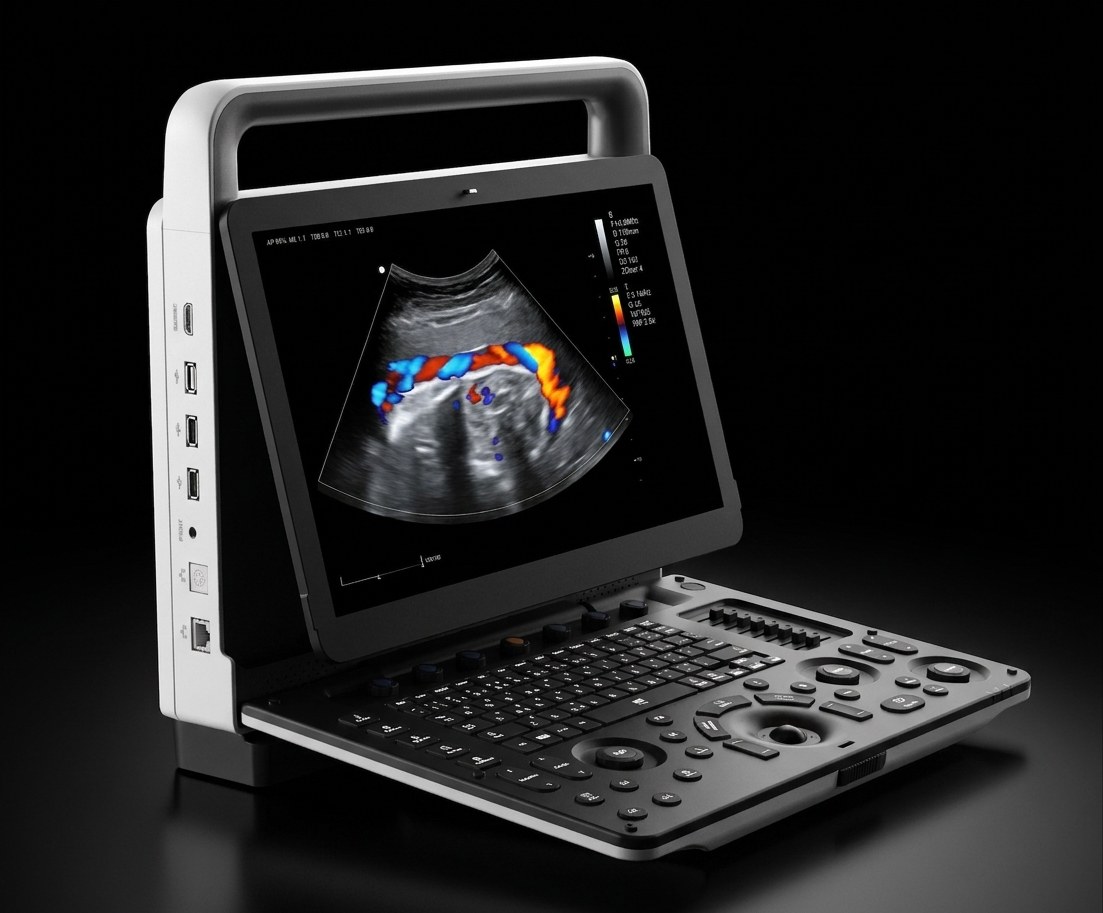

The PCB-VIEW-07 is a laptop-style portable Color Doppler ultrasound built around Metadata Beamforming metadata beamforming — a CPU + GPU + FPGA platform that delivers +50% computational speed and +30% heat-dissipation efficiency over the previous generation. All images are stored as raw metadata for offline parameter adjustment after the exam.
At just 6.3 kg with a built-in lithium battery, 15.6″ medical LCD and 3 activated transducer connectors, it ships with 3C5PDS convex + 7L4PDS linear probes as standard and supports the full PCB probe family — convex, linear, transvaginal, phased-array, 4D volume, microconvex.
7 special transducer bundles.
Config 1 · Standard
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
Config 2 · + Transvaginal
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
+1 pc 6E1PDS Transvaginal
Config 3 · + Cardiac
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
+1 pc 3P2PA Phased Array
Config 4 · TV + Cardiac
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
+1 pc 6E1PDS Transvaginal
+1 pc 3P2PA Phased Array
Config 5 · 4D OB/GYN
+1 pc 3C5PDS Convex
+1 pc 6E1PDS Transvaginal
+1 pc 4V4CDS Volume (4D)
Config 6 · 4D General
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
+1 pc 4V4CDS Volume (4D)
Config 7 · Full Package
+1 pc 3C5PDS Convex
+1 pc 7L4PDS Linear
+1 pc 6E1PDS Transvaginal
+1 pc 4V4CDS Volume (4D)
All configurations include the PCB-VIEW-07 main unit with custom suitcase. Add optional accessories (puncture guides, foot switch, video printer, DICOM, Remote Imaging Platform) to any package.
Add any probe to your configuration.
Convex Transducer
Model 3C5PDS
Abdomen · OB · Gynecology · Urology · General
Linear Transducer
Model 7L4PDS
Vascular · Thyroid · Breast · MSK · Superficial
Transvaginal Transducer
Model 6E1PDS
Endocavity OB/GYN · IVF · Early pregnancy
Phased Array Transducer
Model 3P2PA
Adult + Pediatric Cardiac · includes Extended Cardiac Package FREE
4D Volume Transducer
Model 4V4CDS
Volumetric 4D OB/GYN · includes 4D Live Rendering FREE
Microconvex Transducer
Model 6C1PD
Pediatric / Neonatal abdomen · Cardiac · Superficial
Complete your system.
Puncture Guide ZNG-07
For 3C5PDS Convex transducer — abdominal biopsy & guided intervention
Puncture Guide ZNG-08
For 7L4PDS Linear transducer — breast / thyroid / lymph node biopsy
Puncture Guide ZNG-09
For 6E1PDS Transvaginal transducer — oocyte retrieval, gynecology intervention
Foot Switch
Hands-free freeze / capture / parameter toggle — sterile procedures
Custom Suitcase
Padded travel suitcase — included with every unit (also available as spare)
Rolling Trolley
Mobile trolley for clinic / floor use — ergonomic working height
Video Printer
High-resolution thermal video printer — on-the-spot B-mode / Color / Doppler print
Elastography
Strain elastography software — only available with Linear Transducer
Extended Cardiac Package
Free Steering M + Color M — FREE when ordering with Phased Array transducer
4D Live Rendering Rendering
4D lighting render module — FREE when ordering with 4D Volume transducer
DICOM 3.0 Package
Full DICOM 3.0 — Store · Print · Worklist · Storage Commitment · MPPS
Remote Imaging Platform
Remote ultrasound system — real-time consultation, live teaching, training
Efficient and fast workflow.
Match the ingenious ergonomic design with the compact size — PCB-VIEW-07 has remarkable adaptability and can fit variable usage scenarios.
15.6″ Medical LCD · 75° rotation
Medical-grade LCD monitor with 75° max adjustable angle. Wide viewing angle for bedside use from any position.
HDMI port
HDMI video output for external display, secondary monitor and image projection.
3 USB ports
Three USB ports for image export, accessory connection and printer interface.
Light-weight 6.3 kg
Compact portable footprint — moves between rooms, floors, ambulances and outreach campaigns.
Built-in Battery
Internal lithium battery as standard. Removable / hot-swappable for long outreach days.
Backlit Keyboard
Backlit keys for low-light scanning. Splash-resistant protection film for reliable cleaning and disinfection.
Probe holder removable
The probe holder is removable for cleaning, transport or alternative probe arrangements.
Various probe selection
Wide range of probes for clinical applications including Abdomen, Gynecology, Thyroid, Urology, Vascular, Cardiology, Musculoskeletal and Neurological intervention.
The technology that powers PCB-VIEW-07.
The PCB-VIEW-07 facilitates accurate diagnosis based on Metadata Beamforming metadata beamforming imaging technology platform. This brand-new platform is developed on CPU + GPU + FPGA heterogeneous computing technology. Images in the Metadata Beamforming platform are saved as metadata for post-processing.
PIHI · Pulse Inverse Harmonic Imaging
PIHI reduces the distortion generated by the fundamental wave and greatly improves the signal-to-noise ratio.
Advanced Speckle Reduction
Advanced Speckle Reduction technology significantly reduces unwanted speckle, provides enhanced tissue boundary and tissue echo for confident clinical diagnosis.
Frequency Composite Imaging (FCI)
Combines the high penetration of fundamental frequency with the high resolution of harmonic frequency to improve detail and contrast resolution in both near and far field — providing the best image quality across the entire depth range.
Spatial Compound Imaging (SCI)
SCI provides better contrast resolution, reduces speckle noise and smoothes the imaging of homogeneous tissue — ideal for liver, breast, thyroid and superficial vascular.
Remarkable performance across specialties.
The PCB-VIEW-07 provides remarkable performance in Abdomen, Gynecology (including endocavity), Obstetrics, Cardiology, Small parts (Breast, Testes, Thyroid, etc.), Urology, Musculoskeletal and Peripheral vascular. A variety of imaging modes brings a comprehensive clinical application:
Display: B-Steer · TSI · THI · SCI · FCI · Biopsy Function
Vascular/MSK: Auto IMT · Auto Trace · Panoramic Imaging · Elastic Imaging · EFOV
Cardiology: Auto EF · PW · CW · TDI · AMM · Curved AMM · CMM
OB & GYN: Auto OB · Auto NT · 3D/4D · ZPage · 4D Live Rendering · Auto Follicle
Advanced diagnostic features.
Radiology · MicroFlow Imaging
Enhances the visualization of micro-vascular or complex flow patterns, especially in small vessels.
Radiology · Intelligent Blood Flow Tracking
Intelligently identifies the location of blood vessels. Continuous tracking of blood flow, with real-time optimization to achieve better blood flow visualization.
Cardiology · AMM
AMM allows up to three sampling lines to be placed at any angle, facilitating multi-directional observation of ventricular wall movement.
Cardiology · Auto EF
Recognizes the myocardial intima during the diastolic and systolic period and calculates the ejection fraction automatically — reduces the operator steps and improves work efficiency.
OB/GYN · Auto OB
Automatic identification of obstetric standard sections and automatic measurement (BPD · HC · AC · FL, etc.).
OB/GYN · Auto Follicle
Automatically identifies and calculates the size of follicles — essential for IVF cycle monitoring.
OB/GYN · 4D Live Rendering
Leveraging ray-casting and innovative virtual lighting, 4D Live Rendering renders highly realistic fetal visuals featuring lifelike skin textures.
Factory warranty coverage.
2 years · Main Unit
2-year factory warranty on the PCB-VIEW-07 main unit from ex-factory date.
1 year · Transducers + Battery
1-year factory warranty on transducers and lithium battery from ex-factory date.
Manufactured under ISO 13485
The PCB-VIEW-07 is manufactured under ISO 13485 certification, with CE mark for the European market. Every unit passes a full safety + functional test before shipping. Main unit: 2-year warranty from ex-factory date. Transducers + battery: 1-year warranty.
✓ ISO 13485
✓ 2-year warranty
Product brochure
Complete PCB-VIEW-07 data sheet in PDF, ready to print or send to your customer.
