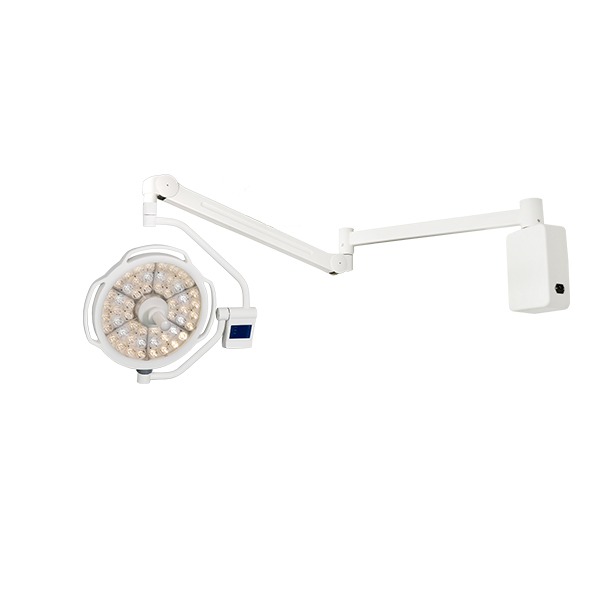

Surgical Light · WCM Series · Wall-Mounted Single Head

PCB-WCM-120

Wall-mounted single-head LED surgical light — up to 120,000 lux, 54 high-output LEDs, LCD touch control, articulating arm. The space-saving alternative to ceiling-mounted lights.

View specifications

Up to 120,000 lux
Wall-mounted
LCD touch control
50,000 hr LED

120,000 luxPeak illumination

3500–5000 KColor temperature

54 LEDsHigh-output array

50,000 hrLED service life

Overview

Operating-room illumination, wall-mounted.

The PCB-WCM-120 is a single-head wall-mounted LED surgical light. Same 54 high-output LEDs and 40,000–120,000 lux range as the SCM-500 ceiling variant — same illumination performance in a wall-mounted form factor. Ideal for rooms where ceiling mounting isn’t practical: pre-existing structures, low ceilings, retrofits, smaller procedure suites. CRI 85–95 with adjustable color temperature 3500–5000 K. LCD touch panel on the yoke for one-touch intensity, color temperature, and field-size control. Articulating arm reaches across the procedure table with smooth positioning.

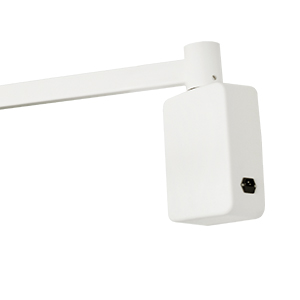

Wall-mounted articulating arm

Same OR-grade light, no ceiling required

Wall-mounted base plus multi-segment articulating arm extends across the procedure table with full reach. Smooth spring-balanced positioning holds without drift. Ideal for retrofits where ceiling mounting isn’t practical, smaller procedure suites, or rooms with structural ceilings.

Wall-mounted base · structural plate included
Multi-segment articulating arm · full reach
Spring-balanced — holds position without drift
Sterile center handle for in-field positioning
Compact footprint vs ceiling-mounted equivalent

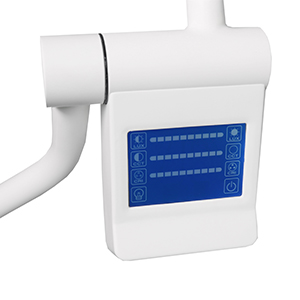

LCD touch control

54 high-output LEDs, true-color rendering

Fifty-four high-output LEDs deliver 40,000–120,000 lux with adjustable color temperature 3500–5000 K and CRI 85–95 — true tissue color rendering for surgical work. LCD touch panel on the yoke gives one-touch control of intensity, color temperature, and focus. Heat-to-light ratio < 3.6 mW/m²·lux keeps the field cool during prolonged procedures.

54 high-output LEDs · 50,000 hr life
40,000 – 120,000 lux at the working distance
Color rendering 85–95 (Ra) · 3500–5000 K adjustable
LCD touch panel — LUX / CCT / CRI
Heat-to-light < 3.6 mW/m²·lux

Why WCM-120

Built for retrofits and tight spaces.

💡
120,000 lux peak40,000–120,000 lux — same illumination performance as the SCM-500 ceiling variant. No compromise vs ceiling mount.
🧱
No ceiling requiredWall-mounted base saves ceiling structural work. Ideal for retrofits, low-ceiling rooms, and existing buildings.
❄️
Cold LED lightHeat-to-light < 3.6 mW/m²·lux. No surgeon discomfort, no field heating during long procedures.

Applicable across clinical environments

General Surgery
Minor Procedures
Emergency Room
Outpatient Surgical Center
Retrofit Installations
Dermatology
Gynecology & Obstetrics

Technical data

Specifications

Complete technical data for the PCB-WCM-120 wall-mounted LED surgical light.

Illumination intensity40,000 – 120,000 lux

Color temperature3500 – 5000 K (adjustable)

Color rendering index (Ra)85 – 95

Heat-to-light ratio< 3.6 mW/m²·lux

Illumination depth> 700 mm

Light spot diameter120 – 300 mm

LED quantity54 high-output

LED service life> 50,000 hours

Mount typeWall-mounted, single head

Arm typeMulti-segment articulating

ControlLCD touch panel on yoke

PowerMains AC

CertificationsCE Approved

Certified quality

Manufactured under ISO 13485

ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.

✓ CE
✓ ISO 9001
✓ ISO 13485

📄

Product brochure

Complete PCB-WCM-120 datasheet in PDF, ready to print or send to your client.

Download brochure (PDF) ↓

PDF format · English · 2 pages
