Wall-Mount LED Surgical Light · 150,000 lux · 72 LEDs · LCD Touch

PCB-WML-20

About the PCB-WML-20

Surgical-grade illumination, wall-mounted.

The PCB-WML-20 Wall-Mount LED Surgical Light brings full operating-room illumination to spaces where ceiling mounting is impractical — low-floor ORs, small procedure rooms, ambulatory surgery centers and remote facilities.

Built around 72 high-output LEDs with proprietary lenses (each LED has its own lens) delivering 60,000 – 150,000 lux with multiple beam overlap for a uniform, shadow-free light spot. Color temperature is adjustable from 3,500 to 5,000 K, with color rendering index Ra 85 – 97 for accurate tissue visualization.

An independent spring + rotating arm assembly — structurally identical to the ceiling version — provides effortless 360° positioning. The LCD touchscreen control panel mounted on the yoke synchronizes lux, CCT and CRI in real time.

Specifications

Built to operating-room standards.

ModelPCB-WML-20

ConfigurationSingle-head · wall mount

Illumination intensity60,000 – 150,000 lux (adjustable)

Color temperature3,500 – 5,000 K (adjustable)

Color rendering (Ra)85 – 97

Heat to light ratio< 3.6 mW/m²·lux

Illumination depth> 1,400 mm

Light spot diameter120 – 300 mm (adjustable)

LED quantity72 LEDs

LED service life> 60,000 hours

Mount typeWall-mounted

Spring armIndependent · ONDAL imported or PCB-improved

Articulating armRotating yoke · 360° positioning

HandleSterile center handle

ControlLCD touchscreen on yoke

Touch parametersLUX / CCT / CRI / on-off

Endoscope modeSpecial low-intensity for MIS

Lens designProprietary · one lens per LED · uniform spot

PowerMains AC

CertificationsCE · ISO 9001 · ISO 13485

Key features

Engineered for every operating room.

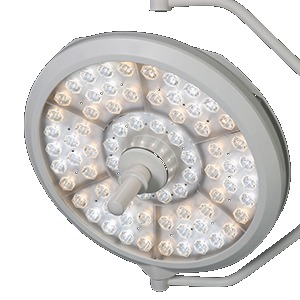

72 LEDs · proprietary lenses

Each LED has its own custom-developed lens. Overlapping beams from 72 individual lenses create a uniform light spot with significantly reduced shadow rate — clinically superior to off-the-shelf lenses.

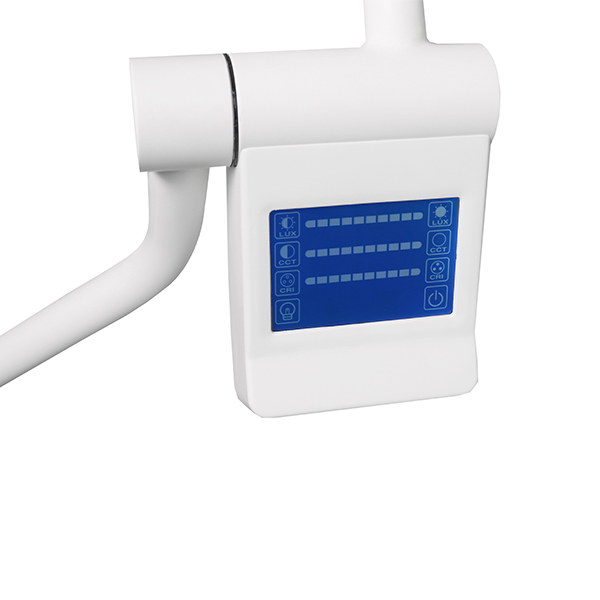

LCD touchscreen control

User-friendly LCD touchscreen panel mounted on the yoke. Synchronously adjust LUX, CCT and CRI in real time. On/off and endoscope mode at one tap.

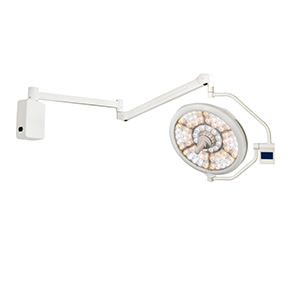

Independent spring arm

Structurally identical to ceiling-mount version. Choice of ONDAL imported spring arm (industry gold standard) or PCB-improved arm with upgraded balance.

Designed for compact ORs

Engineered for operating rooms with low floor height, small footprint or where ceiling mounting is not possible. Ambulatory surgery centers, procedure rooms, ED bays, field hospitals.

Applications

General Surgery Ambulatory Surgery Procedure Rooms Emergency Department Endoscopy Minor OR Field Hospitals Veterinary OR

Certified quality

Manufactured under ISO 13485

ISO 13485 is the international standard for quality management systems for medical devices. It requires rigorous control of design, manufacturing, traceability and risk management — ensuring a safe product compliant with regulatory requirements in every unit produced.

✓ CE
✓ ISO 9001
✓ ISO 13485

📄

Product brochure

Complete PCB-WML-20 data sheet in PDF, ready to print or send to your customer.

Download brochure (PDF) ↓

PDF format · English
